FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance

اطلاعات پایه
محل منبع: چین
نام تجاری: FANRYN
مقدار حداقل تعداد سفارش: یک 40 HQ
جزئیات بسته بندی: کیسه پلاستیکی
زمان تحویل: 10 روز کاری
شرایط پرداخت: T/T
اطلاعات تکمیلی
مقاومت فشاری: ≥10 کیلو پاسکال مقاومت در برابر دما: -270 درجه سانتیگراد تا 700 درجه سانتیگراد
تراکم: 40-200 کیلوگرم در متر مکعب ضخامت: 25 تا 150 میلی متر
مواد: پشم معدنی روش نصب: تثبیت مکانیکی یا اتصال چسب
جذب آب: <1% مقاومت در برابر آتش: غیر قابل احتراق، کلاس A1
ضریب جذب صدا: 0.85 ابعاد: به طور معمول 600mm x 1200mm
رنگ: زرد یا قهوه ای تاثیر زیست محیطی: قابل بازیافت و سازگار با محیط زیست
هدایت حرارتی: 0.035 W/m·K برنامه های کاربردی: عایق کاری ساختمان، عایق کاری صنعتی، سیستم های HVAC
برجسته کردن:

Non-combustible Class A1 Rock Wool Pipe,Thermal Conductivity 0.035 W/m·K Mineral Wool Pipe,Temperature Resistance -270°C to 700°C Basalt Wool Pipe

,

Thermal Conductivity 0.035 W/m·K Mineral Wool Pipe

,

Temperature Resistance -270°C to 700°C Basalt Wool Pipe


توضیحات محصول

FANRYN Rock Wool Pipe - High-Performance Thermal Insulation for Industrial Applications
FANRYN Rock Wool Pipe is a rigid, lightweight insulation product specifically designed for pipe systems in industrial, commercial, and energy facilities. It is manufactured from natural volcanic rock (basalt) and limestone, which are melted at over 1450°C and spun into fine, high-quality fibers. These fibers are then bonded with thermosetting resin and formed into pipe sections that provide excellent thermal and acoustic insulation.

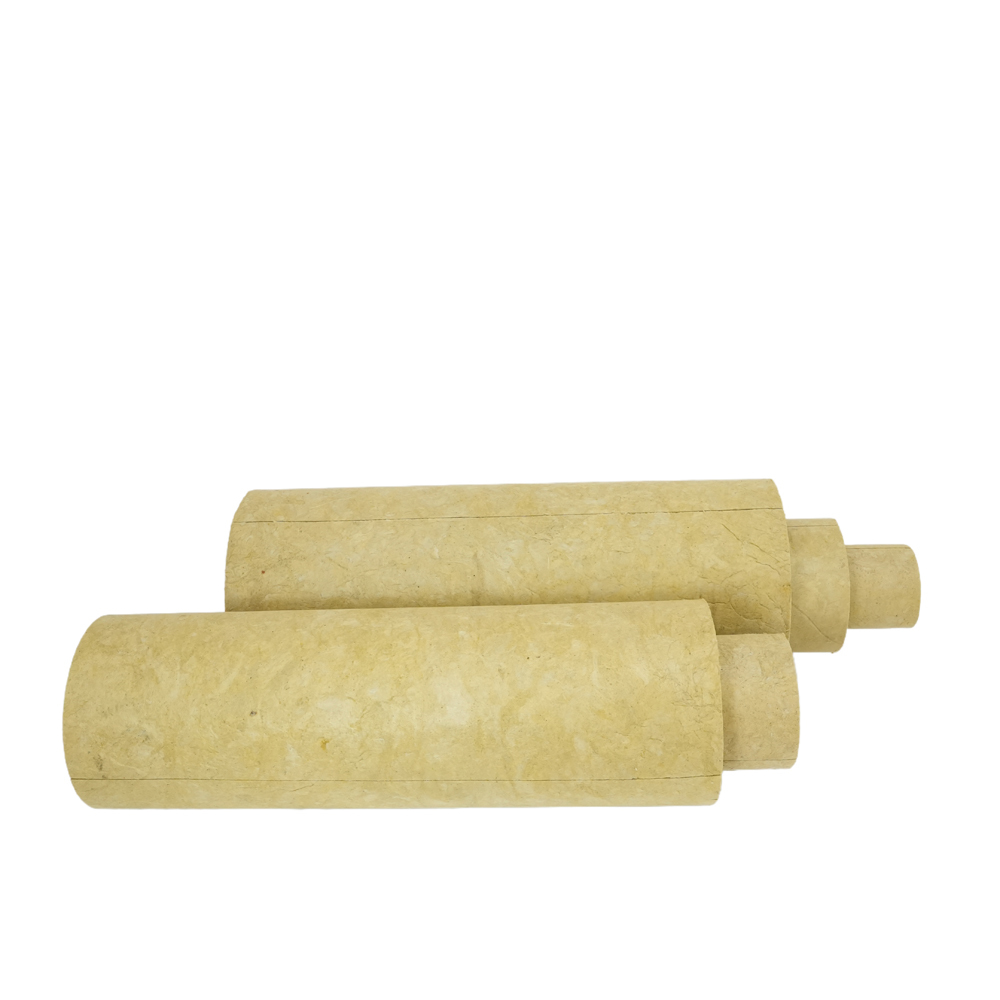

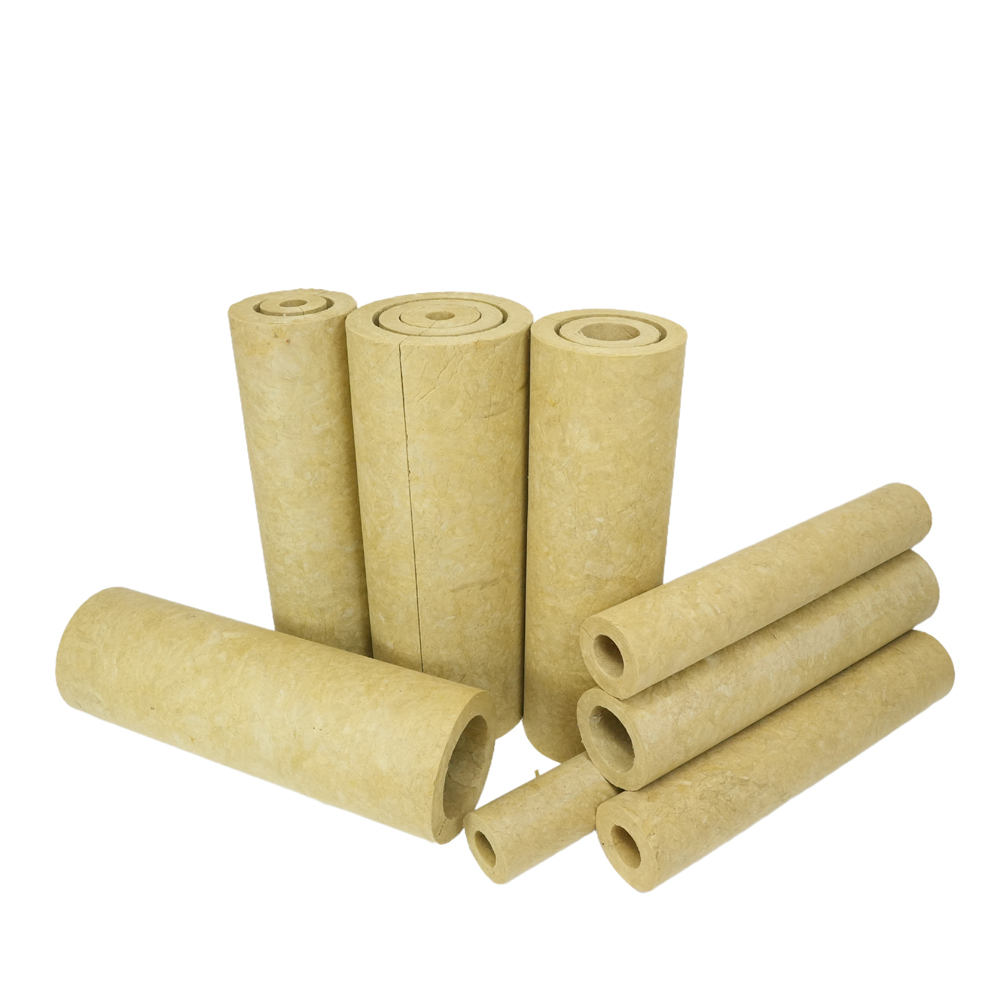

FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance 0 FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance 1
Physical & Technical Specifications
Property Value / Range Standard
Density Tolerance ±15% GB/T 19686-2005
Fire Performance Non-combustible / Class A1 GB/T 5464-1999
Thermal Conductivity (70°C) ≤ 0.044 W/mK GB/T 10295
Fiber Diameter 7 ± 1 µm GB/T 5480.4
Shot Content (>0.25mm) ≤ 12%
Eccentricity (pipe shell) ≤ 5 mm
Available Dimensions
Choose from a wide range of pipe diameters and insulation thicknesses to meet your project requirements.
  • Diameter Range: 22 mm (1/2") up to 610 mm (24")
  • Thickness Range: 25 mm to 150 mm
  • Length: Standard 1 m sections (custom lengths available upon request)
For full availability by diameter and thickness, please refer to our complete size chart.
Applications
  • Power plants
  • Oil refineries and petrochemical facilities
  • Industrial heating and cooling systems
  • HVAC ductwork
  • Marine and offshore pipe insulation
  • District heating networks
Ideal for both indoor and outdoor installations, with or without cladding.

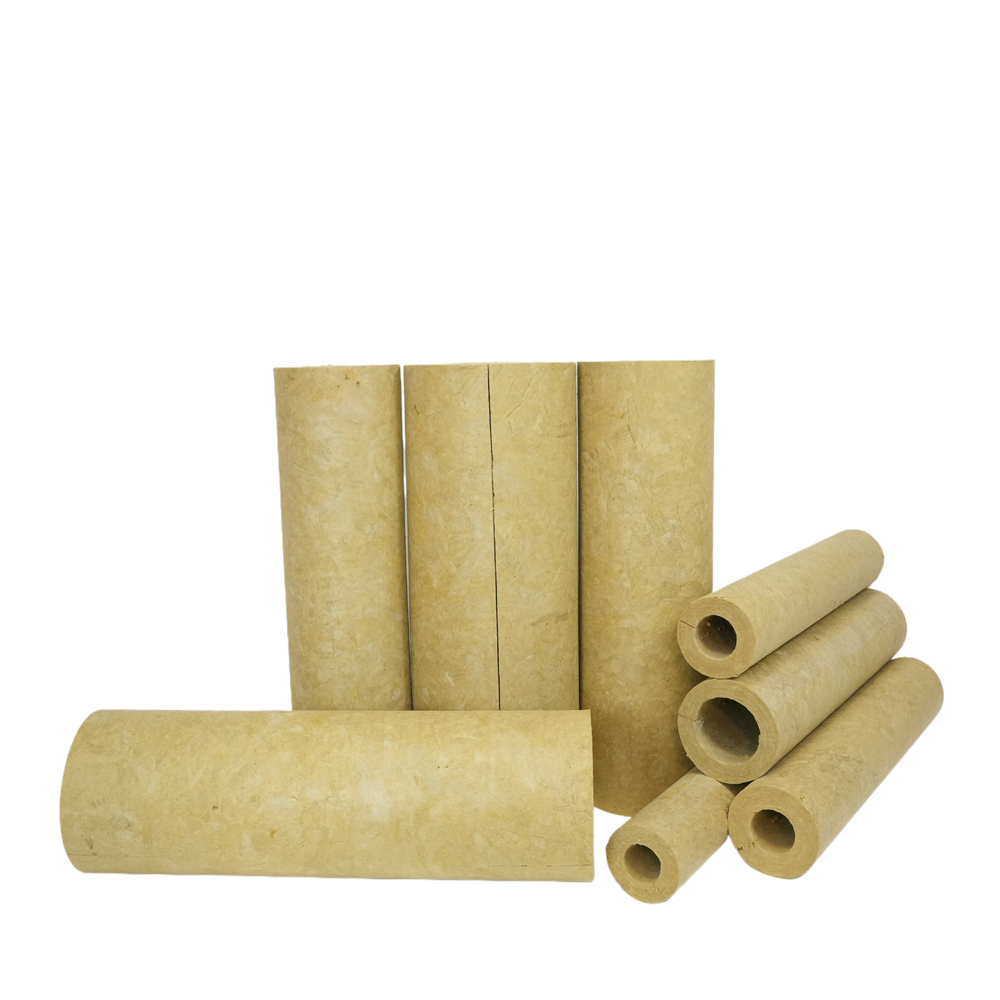

FANRYN Rock Wool Pipe - Non-combustible Class A1 Mineral Wool Pipe with 0.035 W/m·K Thermal Conductivity and -270°C to 700°C Temperature Resistance 2
Packaging
  • Standard export packaging: Plastic-wrapped bundles
  • Moisture-proof and stackable for safe transport and storage
  • Custom packaging available for large-volume orders
Frequently Asked Questions
Q: Can you produce non-standard sizes?
A: Yes. We offer made-to-order services for special diameters, thicknesses, or densities.
Q: Is the pipe suitable for outdoor use?
A: Yes, with proper cladding or weatherproof covering.
Q: How is the product packed for export?
A: Each pipe section is wrapped in plastic and bundled for safe shipping.
Q: What if the product arrives damaged?
A: Please contact us immediately with photos. We will evaluate and offer a solution — replacement or compensation.
