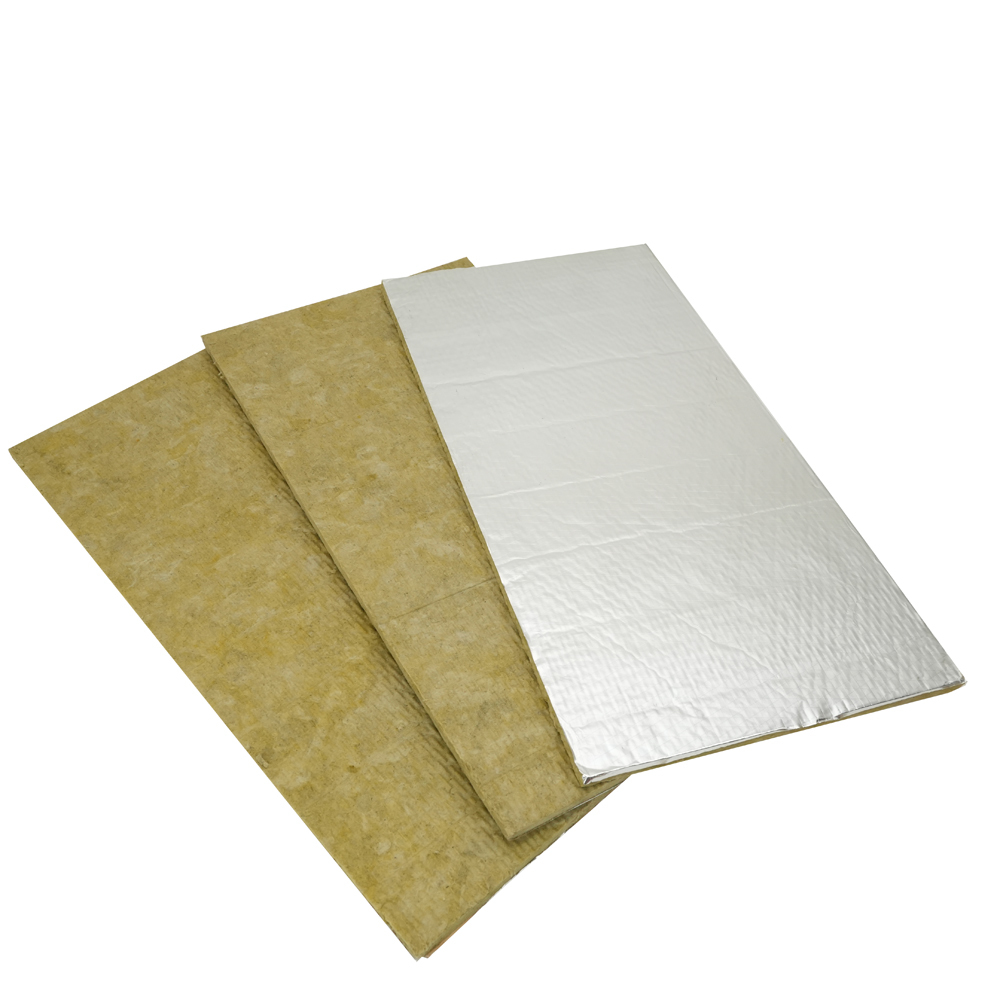

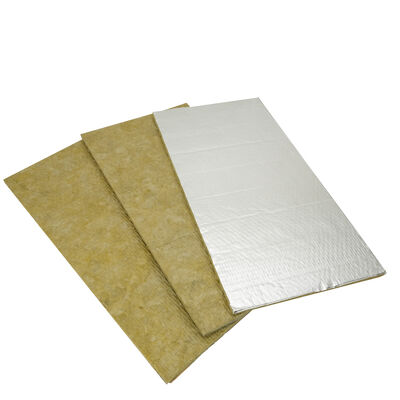

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation
اطلاعات پایه
محل منبع: چین
نام تجاری: FANEYN
گواهی: CE
مقدار حداقل تعداد سفارش: یک 40 HQ
جزئیات بسته بندی: کیسه پلی اتیلن
زمان تحویل: 10 روز کاری
شرایط پرداخت: T/T
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
برنامه: عایق حرارتی ساختمان، تجهیزات صنعتی ابعاد: به طور معمول 600mm x 1200mm
روش نصب: تثبیت مکانیکی یا اتصال چسب رنگ: زرد تا قهوه ای
مقاومت در برابر دما: -180 تا 700 درجه سانتی گراد ضریب جذب صوت: 0.85
نام محصول: عایق حرارتی پشم معدنی ضخامت: 25 تا 150 میلی متر
تراکم: 40-200 کیلوگرم در متر مکعب تاثیرات زیست محیطی: قابل بازیافت، سازگار با محیط زیست
جذب آب: <1% مقاومت در برابر آتش: غیر قابل احتراق، کلاس A1
هدایت حرارتی: 0.035 W/m·K مواد: پشم معدنی
مقاومت فشاری: ≥10 کیلو پاسکال

توضیحات محصول

Rock Wool Board (Stone Wool Insulation Board)
Product Overview:

Rock wool board is a rigid insulation panel manufactured from natural basalt rock and recycled slag. The raw materials are melted at temperatures exceeding 1,500°C and spun into fine fibers, which are then bonded with a thermosetting resin and pressed into stable, rigid boards. The result is a dense, porous material that provides outstanding thermal, acoustic, and fire-resistant performance in a wide range of building and industrial applications.

A1 Non-combustible Rock Wool Board with Low Thermal Conductivity and High Sound Absorption for Thermal Insulation 0
Key Features & Benefits:
Feature Benefit
A1 Non-combustible Highest fire safety rating; melting point above 1,000°C; prevents flame spread
Low Thermal Conductivity ≤0.044 W/(m·K) at 70°C for excellent energy efficiency
High Sound Absorption Dense fiber structure effectively reduces mid-to-low frequency noise
Low Moisture Absorption ≤0.5% water content; resists mold, rot, and corrosion
Dimensionally Stable Maintains shape and performance over time
Easy to Install Can be cut on-site with standard tools; suitable for irregular spaces
Eco-friendly Made from natural stone; asbestos-free and non-toxic
Technical Specifications:
Parameter Specification
Density Range 24 – 96 kg/m³
Density Tolerance ±10%
Thickness Range 25 – 100 mm (customizable)
Length Range 600 – 2,400 mm (customizable)
Width Range 600 – 1,250 mm (customizable)
Thermal Conductivity ≤0.044 W/(m·K) at 70±5°C
Fiber Diameter 7 ± 1 μm
Shot Content (>0.25mm) ≤12%
Moisture Content ≤0.5%
Organic Matter Content ≤4%
Melting Point >1,000°C
Fire Rating A1 Non-combustible
Available Facings:

  1. Foil-Scrim-Kraft Facing

  2. Alum Glass Cloth Facing

  3. Fiberglass Tissue

Unfaced boards are also available.

Packaging:

  • Standard: Plastic bag packaging

  • Custom packaging options available upon request

Applications:

  • Building exterior wall insulation systems

  • Curtain wall fire barriers and cavity walls

  • Roof and ceiling insulation

  • HVAC duct insulation

  • Industrial pipe and equipment insulation

  • Core material for sandwich panels

  • Soundproofing in machine rooms, studios, and theaters

  • Marine and offshore insulation
