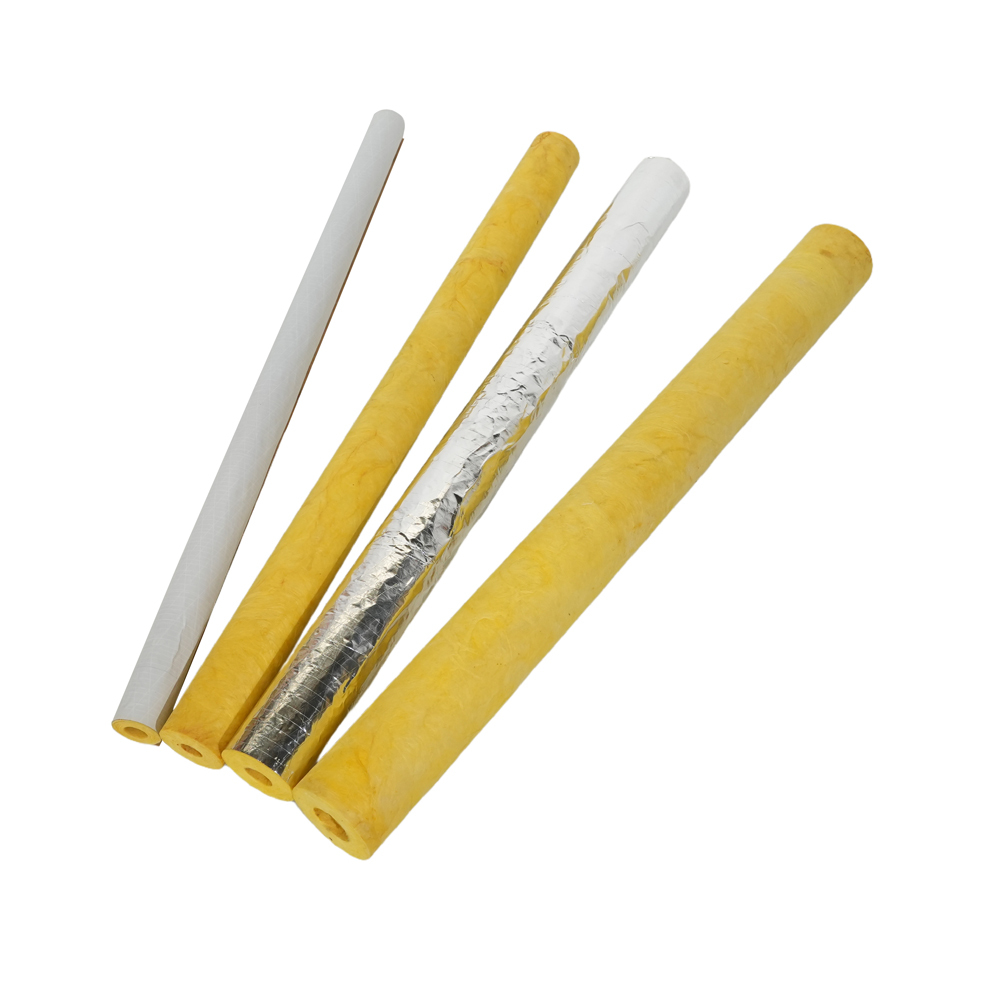

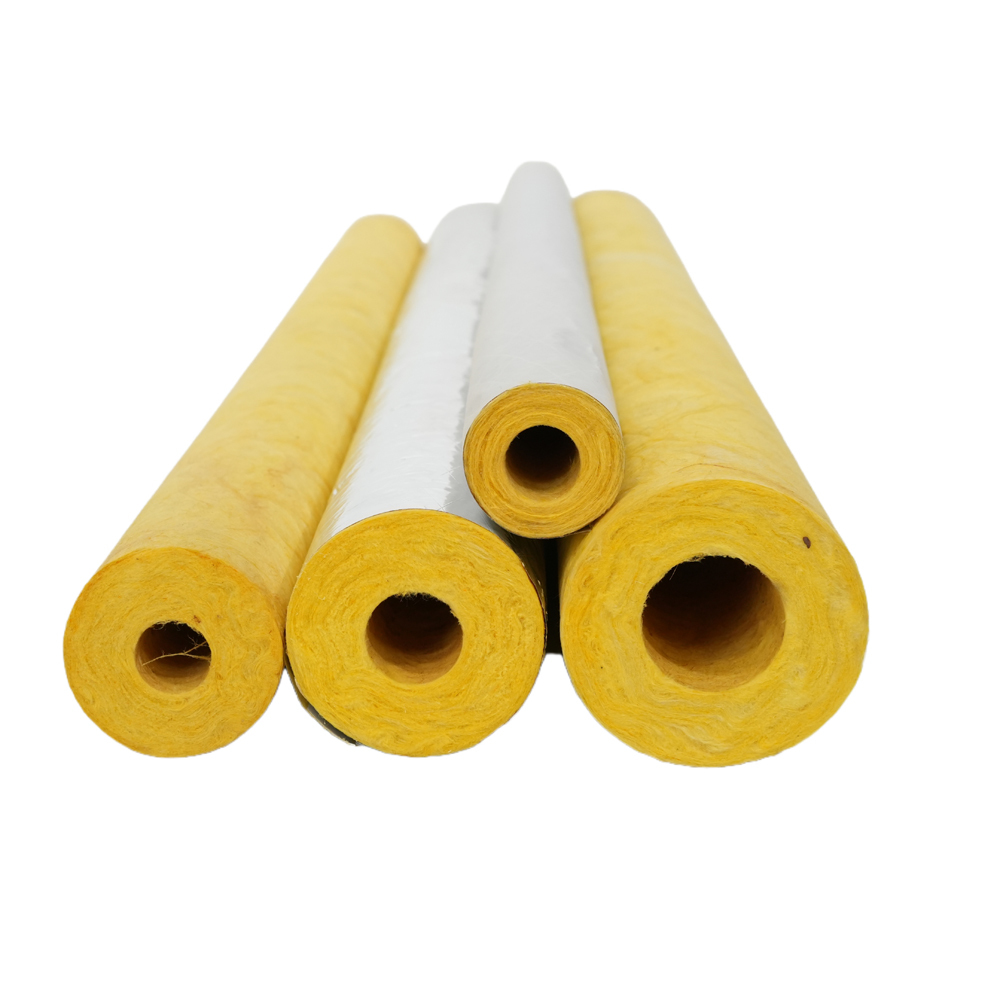

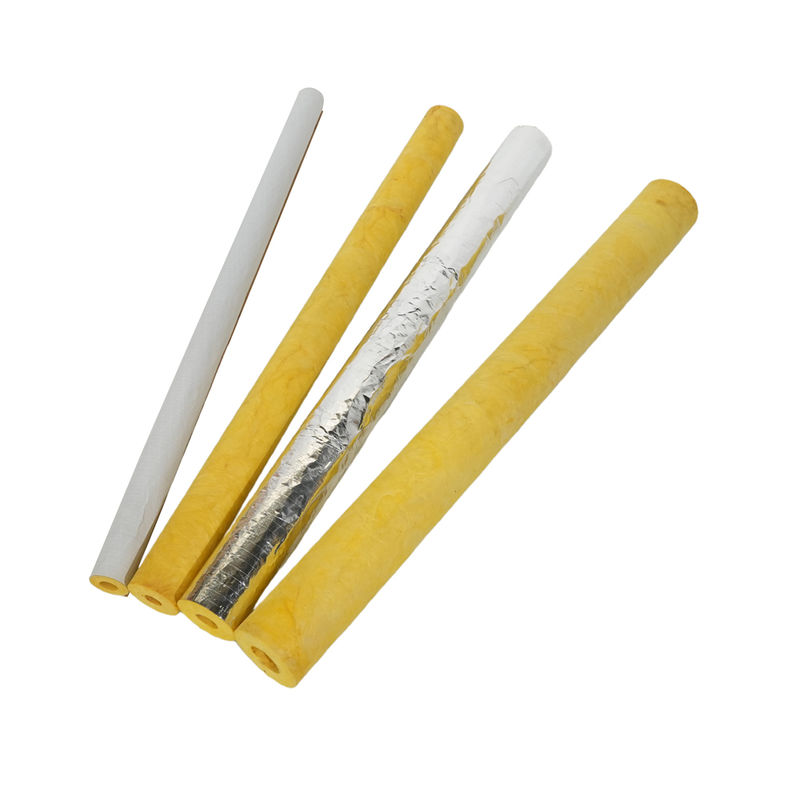

Product introduction of the glass wool pipe
Prevent costly moisture damage and maintain system efficiency with our Glass Wool Pipe Sections designed for condensation control. When insulating cold water pipes, chilled supply lines, or refrigeration pipes, our product effectively keeps the pipe surface temperature above the dew point. This prevents condensation from forming, which can lead to dripping, mold growth, and structural damage. It is an essential solution for protecting plumbing in walls, ceilings, and conditioned spaces.
Product parameter of the glass wool pipe
Recommend Thickness List(mm)
Pipeline System Type | The Thickness of glasswood pipe shell applied in different pipeline(mm) |
|---|
Liquid Temperature Range℃ | Diameter of Branches Under 50mm | Under 25mm | 32-50 | 64-100 | 125-150 | Above 200mm |
|---|
Air System Steaming and Water System High Temperature/
High Pressure System | 152-238 | 40 | 64 | 64 | 75 | 89 | 89 |
Medium Temperature/
Medium Pressure System | 122-151 | 40 | 50 | 64 | 64 | 75 | 75 |
low Temperature/
low Pressure System | 94-121 | 25 | 40 | 40 | 50 | 50 | 50 |
low Temperature System | 49-93 | 13 | 25 | 25 | 40 | 40 | 40 |
Steaming Condensator of Watering System | Any Temperature | 25 | 25 | 40 | 50 | 50 | 50 |
Equivalent Thickness of Surface Cooling Prevention
Environment
Temperature | Relative Humidity | System Working Temperature |
|---|
2℃ | 7℃ | 13℃ |
|---|
38℃ | 50%-60% | 25 | 25 | 25 |
70% | 40 | 30 | 30 |
80% | 75 | 60 | 50 |
85% | 100 | 90 | 75 |
32℃ | 50%-60% | 25 | 25 | 25 |
70% | 25 | 25 | 25 |
80% | 50 | 50 | 40 |
85% | 80 | 75 | 60 |
27℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 |
85% | 75 | 65 | 50 |
21℃ | 50%-70% | 25 | 25 | 25 |
80% | 50 | 40 | 30 |
85% | 75 | 50 | 40 |
If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.
Product size of the glass wool pipe
Density(kg/m3) | Thickness(mm) | Length (mm) | Diameter (mm) |
|---|
48-80 | 25-90 | 1000,1200 | 18-529 |
Product feature and application of the glass wool pipe
Condensation Prevention: Effectively controls "sweating" on cold pipes to protect building integrity.
Mold & Mildew Inhibitor: By keeping surfaces dry, it helps prevent the growth of harmful microorganisms.
Thermal Efficiency: Also provides excellent insulation to maintain desired fluid temperatures in cooling systems.
Easy Installation: Pre-formed sections allow for a snug, seamless fit that maximizes performance.

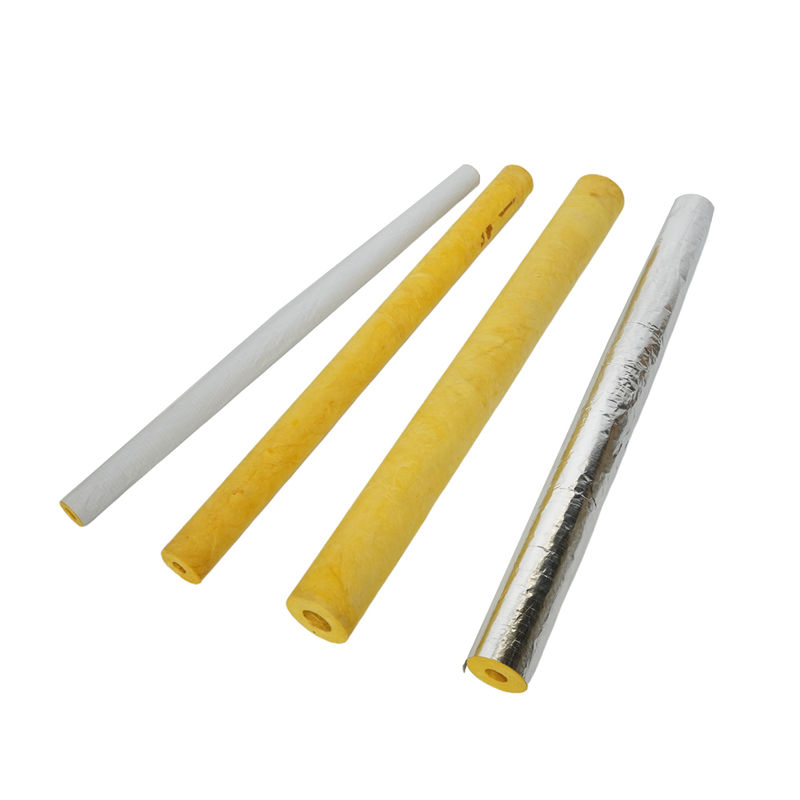

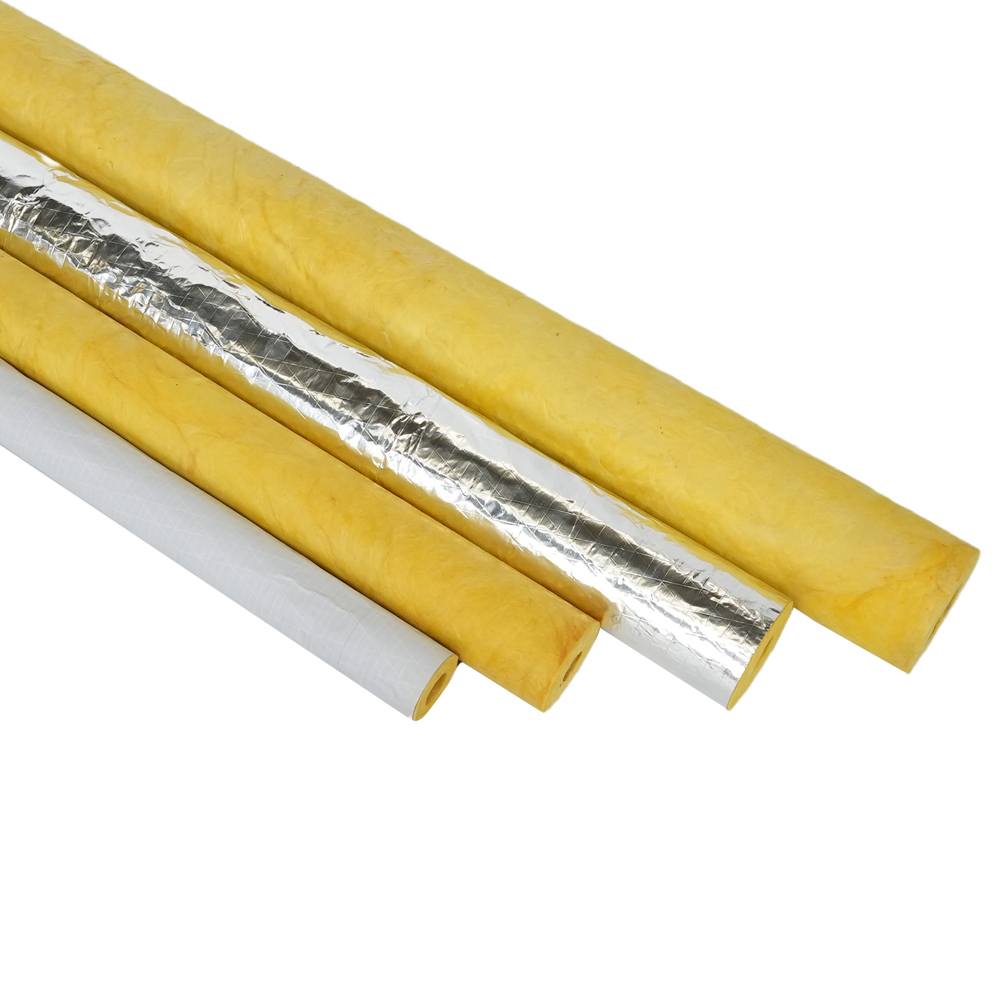

Production Facing of rock wool board
Aluminum foil facing
Foil-Scrim-Kraft Facing
Alum Glass Cloth Facing
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process

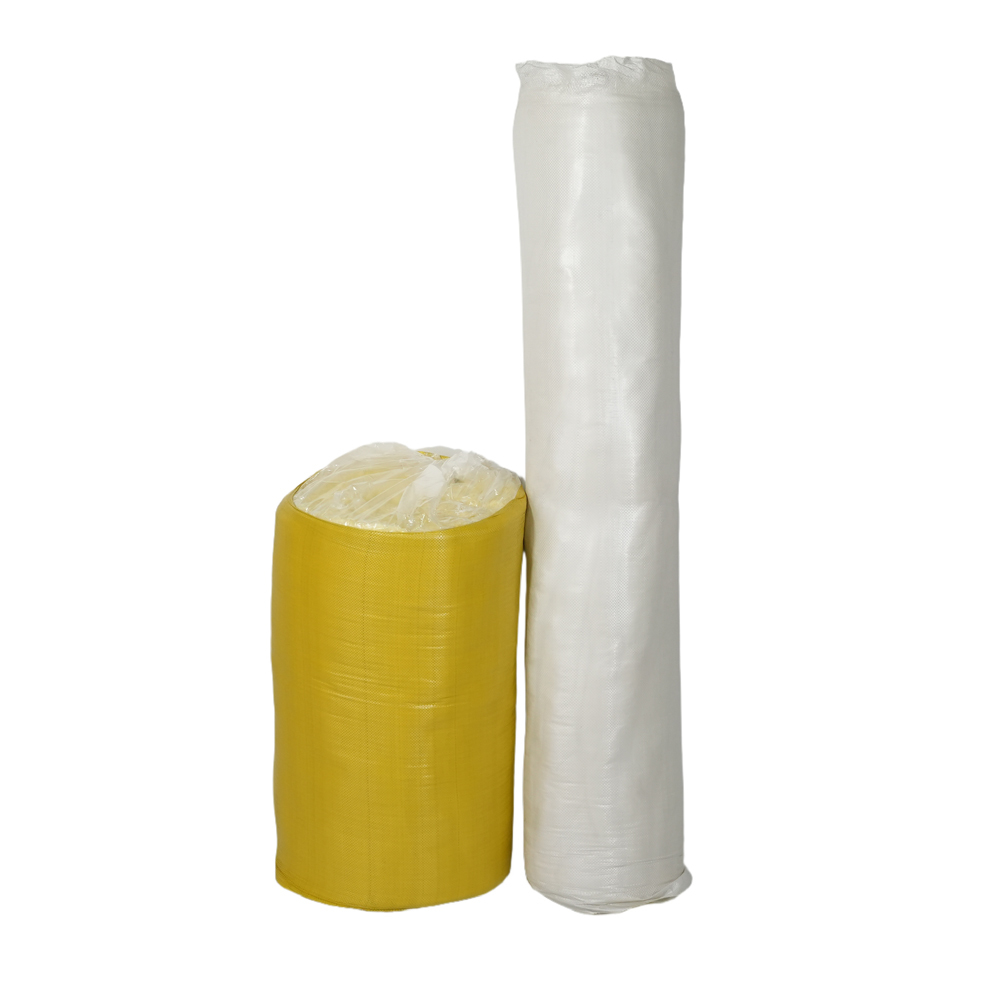

Q2: How to pack exported goods?
A2: Plastic bag (Standard Export Packing).
Q3: What is your lead time for one 40HCcontainer order?
A3: Usual 15-20 work days after placing order
Q4: What is your advantage on glass wool pipe?
A4: Special product with special specification can be made to order.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
