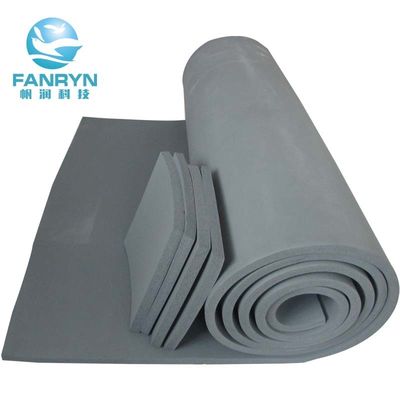

Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity

Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity
Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity Class B0 Rubber Plastic Insulation Sheet with Fire Resistance, Moisture Resistance, and Superior Thermal Conductivity
اطلاعات پایه
محل منبع: چین
نام تجاری: fanryn
گواهی: BS476Part 7∝Part6
شماره مدل: ورق عایق لاستیکی
مقدار حداقل تعداد سفارش: 1*20 فوت
قیمت: 0.1-5$
جزئیات بسته بندی: کیسه پلاستیکی
زمان تحویل: 7-10 روز
شرایط پرداخت: t/t
قابلیت ارائه: 10000 متر مربع
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
مقاومت شیمیایی: مقاوم در برابر بیشتر مواد شیمیایی نوع عایق: گرمی
مقاومت در برابر آتش: کلاس 0 ، کلاس B1 تراکم: 40-90 کیلوگرم در متر مکعب
جذب صدا: بالا روش نصب: پر کردن ، خفاش یا رول
برنامه: سقف ، دیوارها ، کف ، لوله ، مجاری تاثیر زیست محیطی: سازگار با محیط زیست
ماندگاری: ماندگاری طولانی محدوده دما: -50 درجه سانتیگراد تا 110 درجه سانتیگراد
مقاومت در برابر رطوبت: دافع آب
برجسته کردن:

rubber sponge foam sheet roll

,

shock absorption rubber foam

,

waterproof rubber foam sheet

توضیحات محصول

CLASS B0 Rubber Plastic Insulation Sheet
FANRYN CLASS B0 Rubber Plastic Insulation Sheet is a premium thermal insulation material offering exceptional performance. It matches the thermal conductivity of CLASS B1 products while delivering superior heat insulation, enhanced energy efficiency, excellent moisture resistance, and extended service life. The standard finish is charcoal grey.
Furthermore, FANRYN CLASS B0 insulation sheet features outstanding fire resistance due to specialized additives in its composition. Compliant with European standards, it has been widely exported to Southeast Asia, the Middle East, Australia, and other international markets.
Product Specifications
Thickness 10mm 15mm 20mm 25mm 30mm
Length per piece 20m 20m 10m 10m 10m
Tolerance +1.5 +1.5 +3.5 +4 +5
Technical Data
Item Unit Specification Standard
Density Kg/m³ 40~90 GB/T 6343
Temperature ℃ -50~110 GB/T 17794
Oxygen index % ≥40 GB/T 2406
SDR ≤65 GB 8627-1999
Water vapor permeability Factor ≥1.0×10⁴ GB/T 17146-1997
Water vapor permeability coefficient g/(m.s.pa) ≤1.96×10⁻¹¹
Water absorption ratio in vacuum % ≤10 GB/T 17794-2008
Dimension stability 105±3℃,7d % ≤10 GB/T 8811
Crack resistance N/cm ≥2.5 GB/T 10808
Compression resilience ratio % ≥70 GB/T 6669
Product Applications
  • Architecture and Air Conditioning: Workshop Insulation and Air Conditioning Unit Efficiency
  • Industrial maintenance: Insulated cold/hot containers and pipes
  • Noise control: Effective sound absorption system
  • Niche markets: Key environments in diving suits, sports fillers, food, electronics, pharmaceutical and automotive industries
Product Advantages
  • Outstanding thermal efficiency: The extremely low thermal conductivity significantly saves energy
  • Comprehensive safety and durability: Excellent fire resistance, vibration damping and moisture resistance from closed-cell structure
  • Superior application: High flexibility and clean appearance facilitate quick and professional installation
Product Images

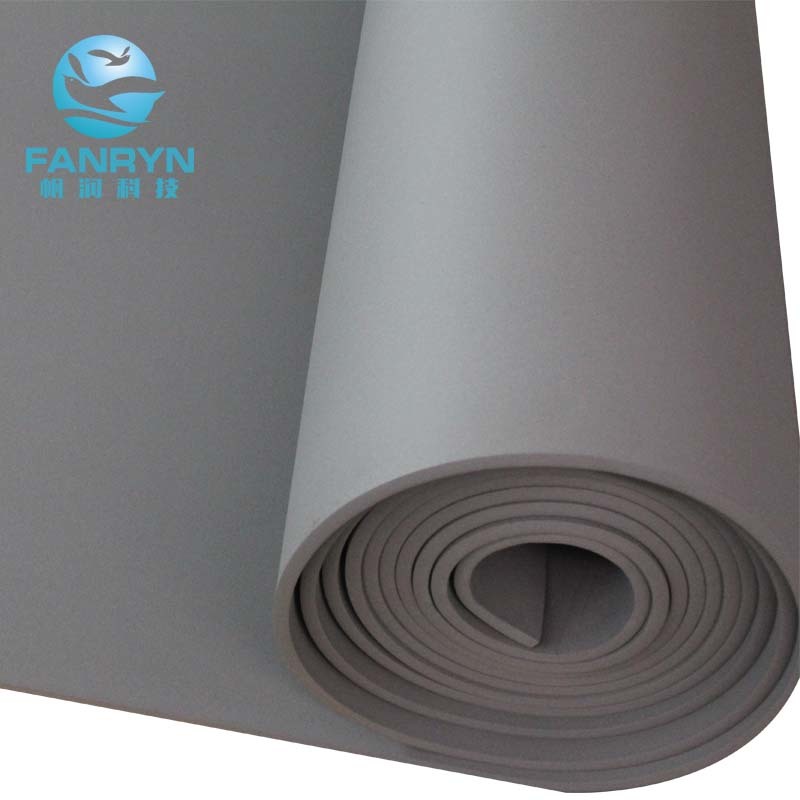

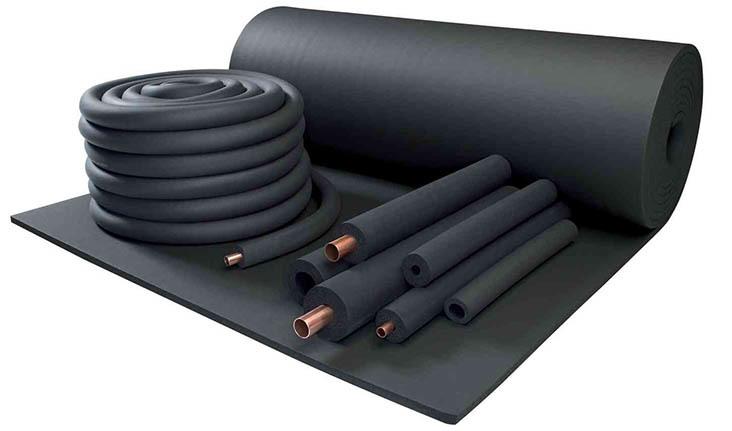

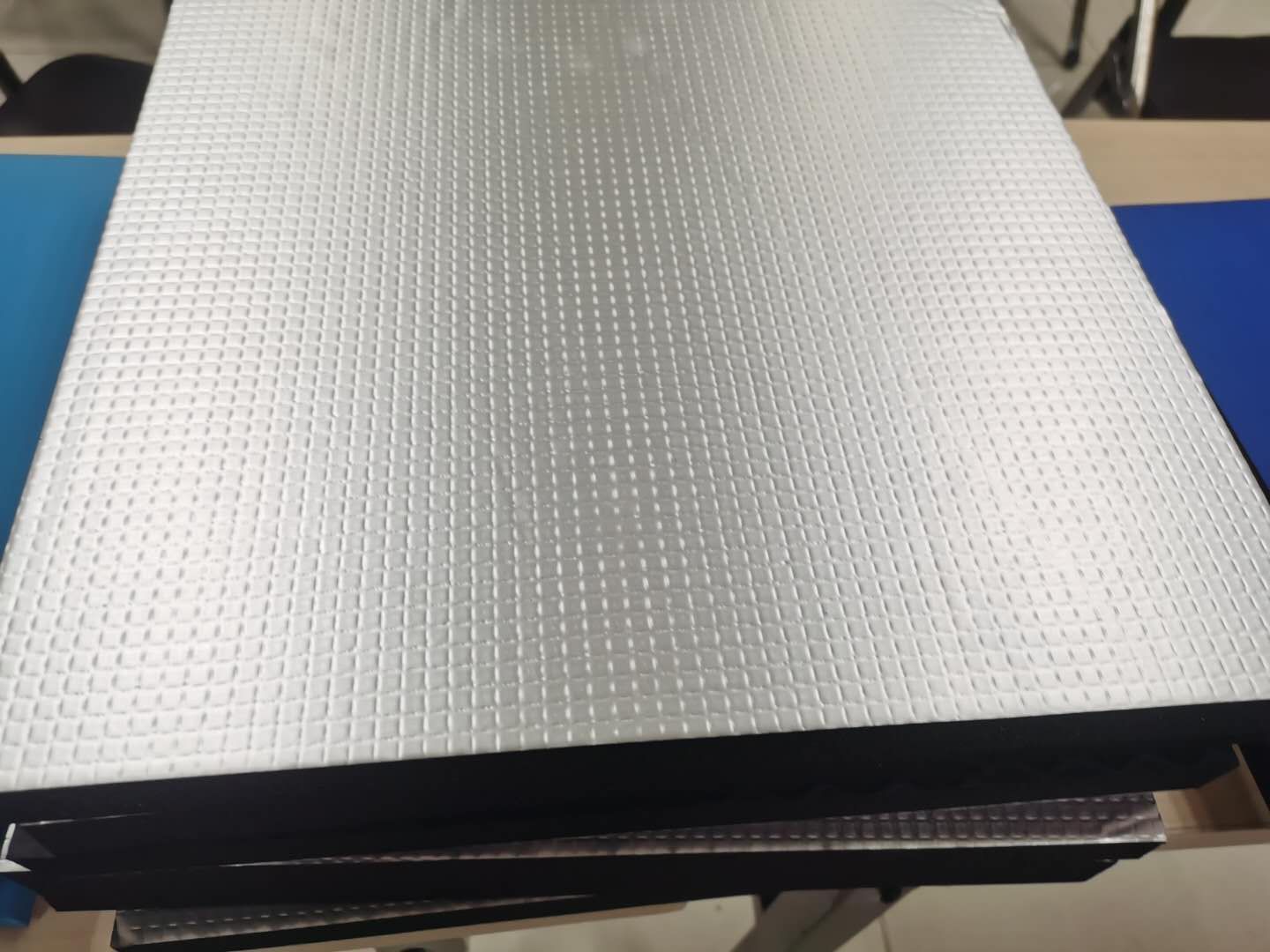

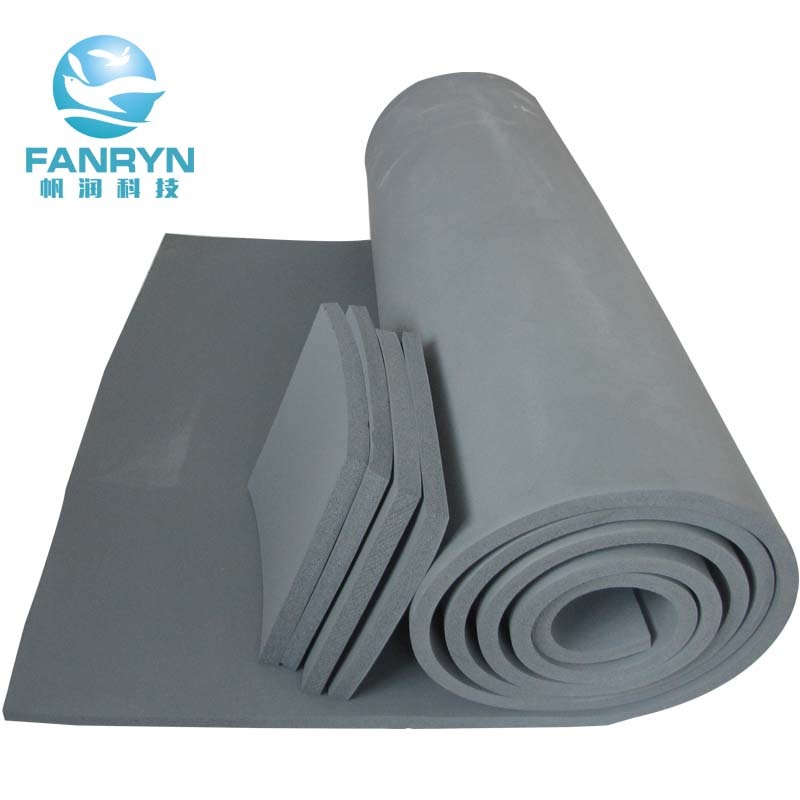

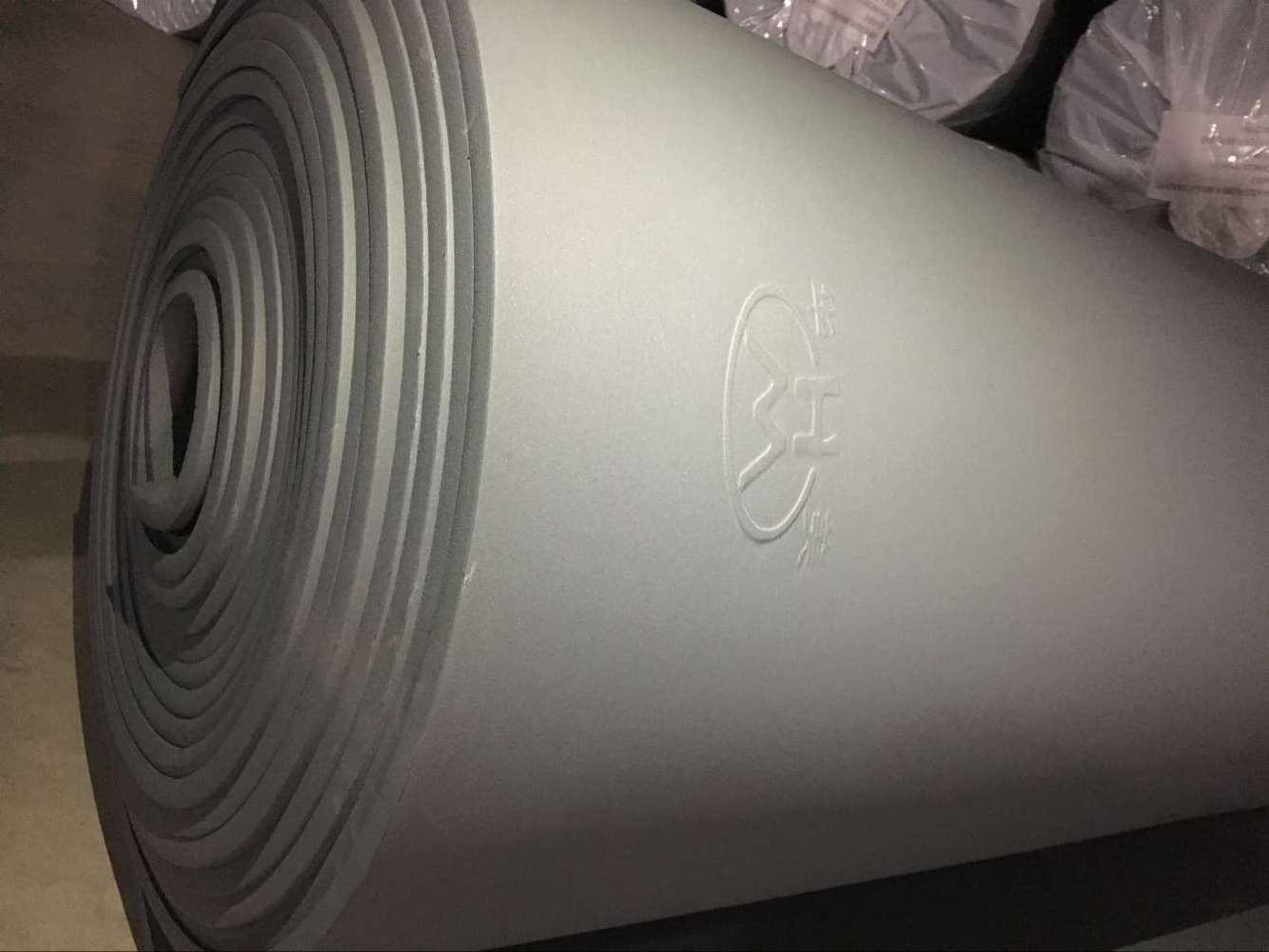

CLASS B0 Rubber Plastic Insulation Sheet product view CLASS B0 insulation sheet installation example CLASS B0 rubber plastic insulation material close-up CLASS B0 insulation sheet application in industrial setting CLASS B0 thermal insulation material sample CLASS B0 rubber plastic insulation sheet packaging
Packaging Options
1. PE plastic bag
2. PE plastic bag + carton
Note: OEM is acceptable
CLASS B0 insulation sheet packaging example
Frequently Asked Questions
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag + woven bag (Standard Export Packing)
Q3: What is your lead time for one 40HC container order?
A3: Usually 10-15 work days after placing order
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly
Additional product information image 1 Additional product information image 2 Additional product information image 3
