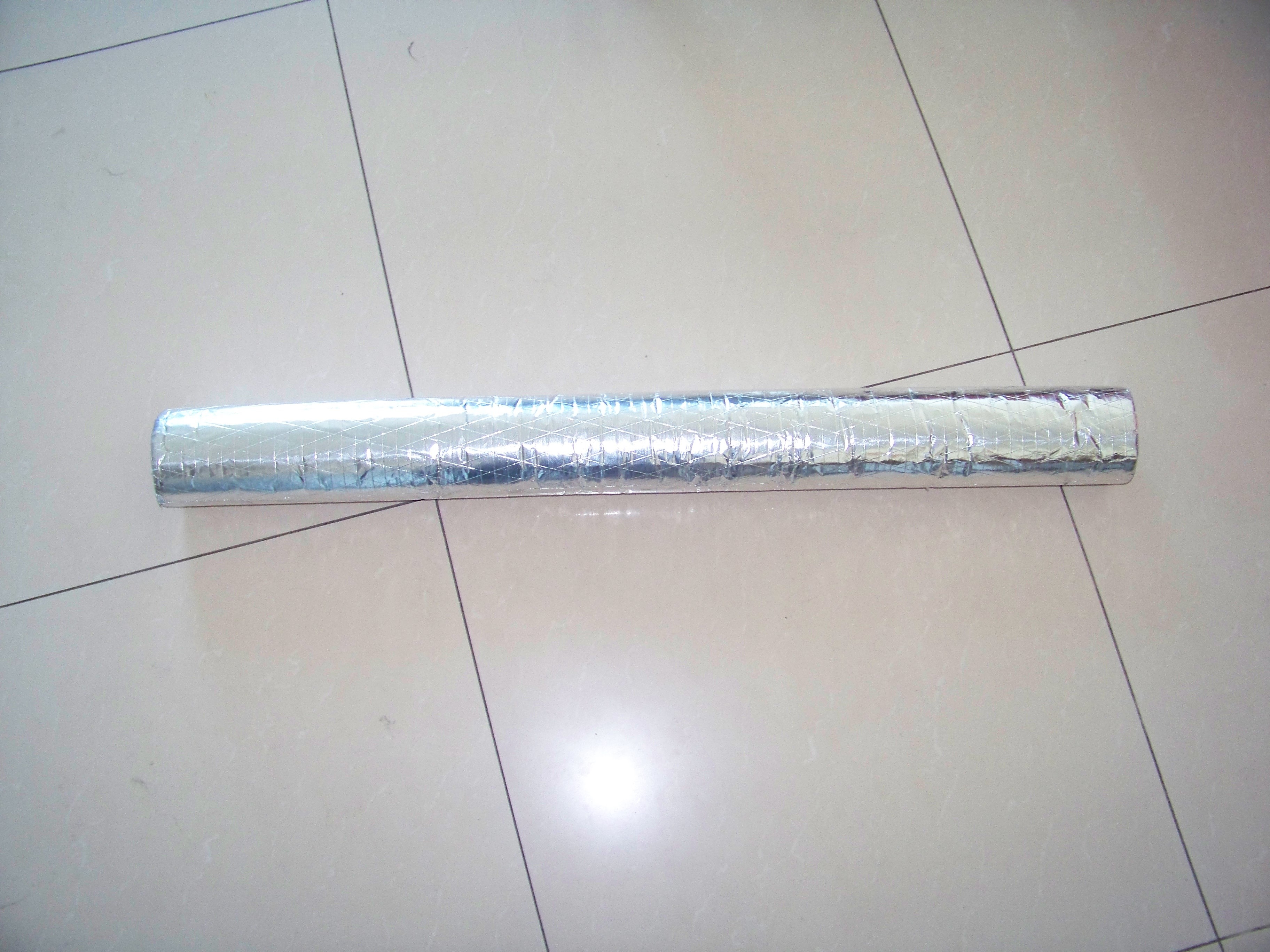

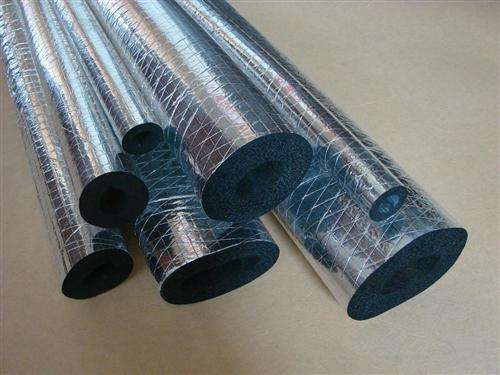

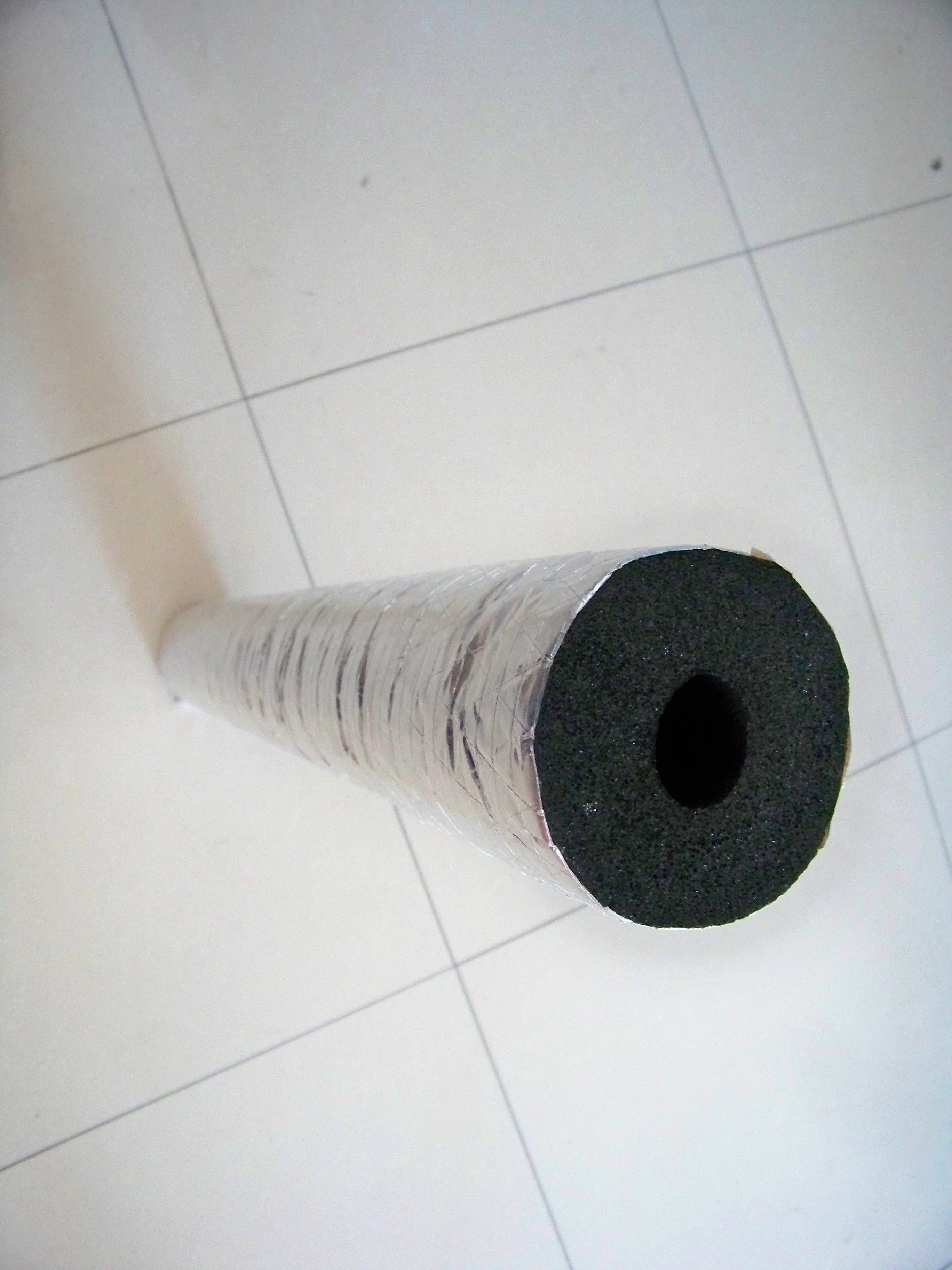

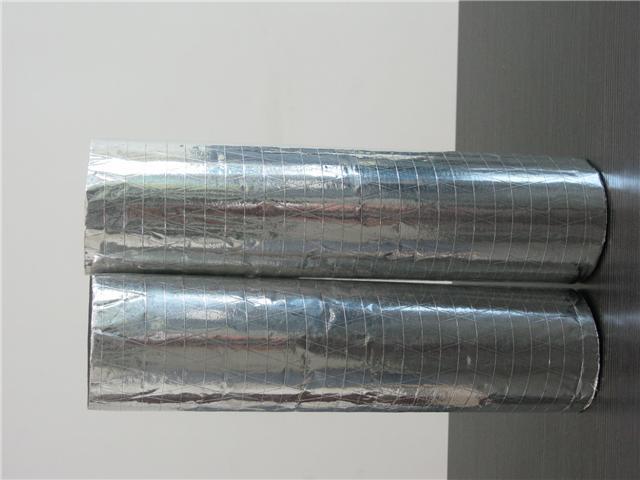

Product introduction of CLASS B0 RUBBER PLASTIC INSULATION PIPE
FANRYN CLASS B0 Rubber Plastic Insulation Pipe is a premium-grade thermal insulation solution engineered for superior performance. Designed to match the low thermal conductivity of CLASS B1 materials, it delivers enhanced thermal efficiency, significantly reduces energy consumption, and provides exceptional moisture resistance for extended durability. With an extended service life and reliable performance, this product is supplied in a standard charcoal-grey finish.
Product Technical Data of CLASS B0 RUBBER PLASTIC INSULATION PIPE
|
Item
|
Unit
|
Specification
|
Standard
|
|
Density
|
Kg/m3
|
40~90
|
GB/T 6343
|
|
Temperature
|
℃
|
-50~110
|
GB/T 17794
|
|
Flammability
|
——
|
Class B1
|
GB/T 8624-2006
|
|
|
|
Glass 0
|
BS476Part 7∝Part6
|
|
Oxy gen index
|
%
|
≥40
|
GB/T 2406
|
|
SDR
|
|
≤65
|
GB 8627-1999
|
|
Conductivity factor
Average temperature
-20℃
0℃
40℃
|
W/(m·k)
|
≤0.031
≤0.034
≤0.036
|
GB/T 10294
|
|
Water vapor permeability
|
Factor
|
——
|
≥1.0×104
|
GB/T 17146-1997
|
|
|
coefficient
|
g/(m.s.pa)
|
≤1.96×10-11
|
|
|
Water absorption ratio in vacuum
|
%
|
≤10
|
GB/T 17794-2008
|
|
Dimension stability
105±3℃,7d
|
%
|
≤10
|
GB/T 8811
|
|
Crack resistance
|
N/cm
|
≥2.5
|
GB/T 10808Compression resilience ratio
|
|
|
%
|
≥70
|
GB/T 6669
|
|
Anti-ozone
|
——
|
Not cracking
|
GB/T 7762
|
|
Agin resistance
|
——
|
Slightly crumpling,no cracks,no pin holes,not deforming
|
GB/T 16259
|
Main application of CLASS B0 RUBBER PLASTIC INSULATION PIPE
1. Chilled water pipes, condense pipes, air ducts and hot-water pipes of air-conditioning equipment
2. heat preservation and insulation of central air-conditioning system
3. Every kind of cold/hot medium piping
Advantage of CLASS B0 RUBBER PLASTIC INSULATION PIPE
Ultra Energy Saving
-Dramatically cuts cooling/heating costs and reduces carbon footprint.
Total Safety & Long Life
-Fire-resistant, moisture-proof, and built to last.
Quick & Easy Install
-Lightweight, flexible, and fits perfectly for a pro finish.
Packing:
1. PE plastic bag
2. PE plastic bag +carton
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
