تراکم: | 40 ~ 90 کیلوگرم در متر مکعب | قابلیت اشتعال: | کلاس 0 ، کلاس B1 |
---|---|---|---|
شاخص ژن اکسی: | ≥40 ٪ | SDR: | ≤65 |
بخار آب: | ≥1.0×104 | پایداری ابعاد 10 ± 3 ℃ ، 7d: | ≤10 ٪ |
مقاومت در برابر ترک: | ≥2.5N/cm | ضد تنش: | ترک خوردگی |
مقاومت: | کمی خرد شدن ، بدون ترک ، بدون سوراخ پین ، نه تغییر شکل | ||
برجسته کردن: | flexible rubber foam pipes,silicone rubber foam tube,foam insulation protect pipe,silicone rubber foam tube,foam insulation protect pipe |

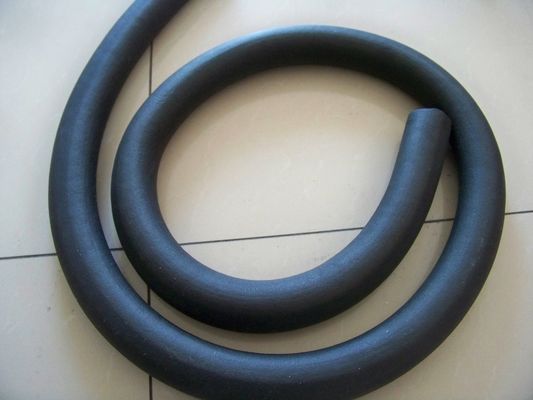

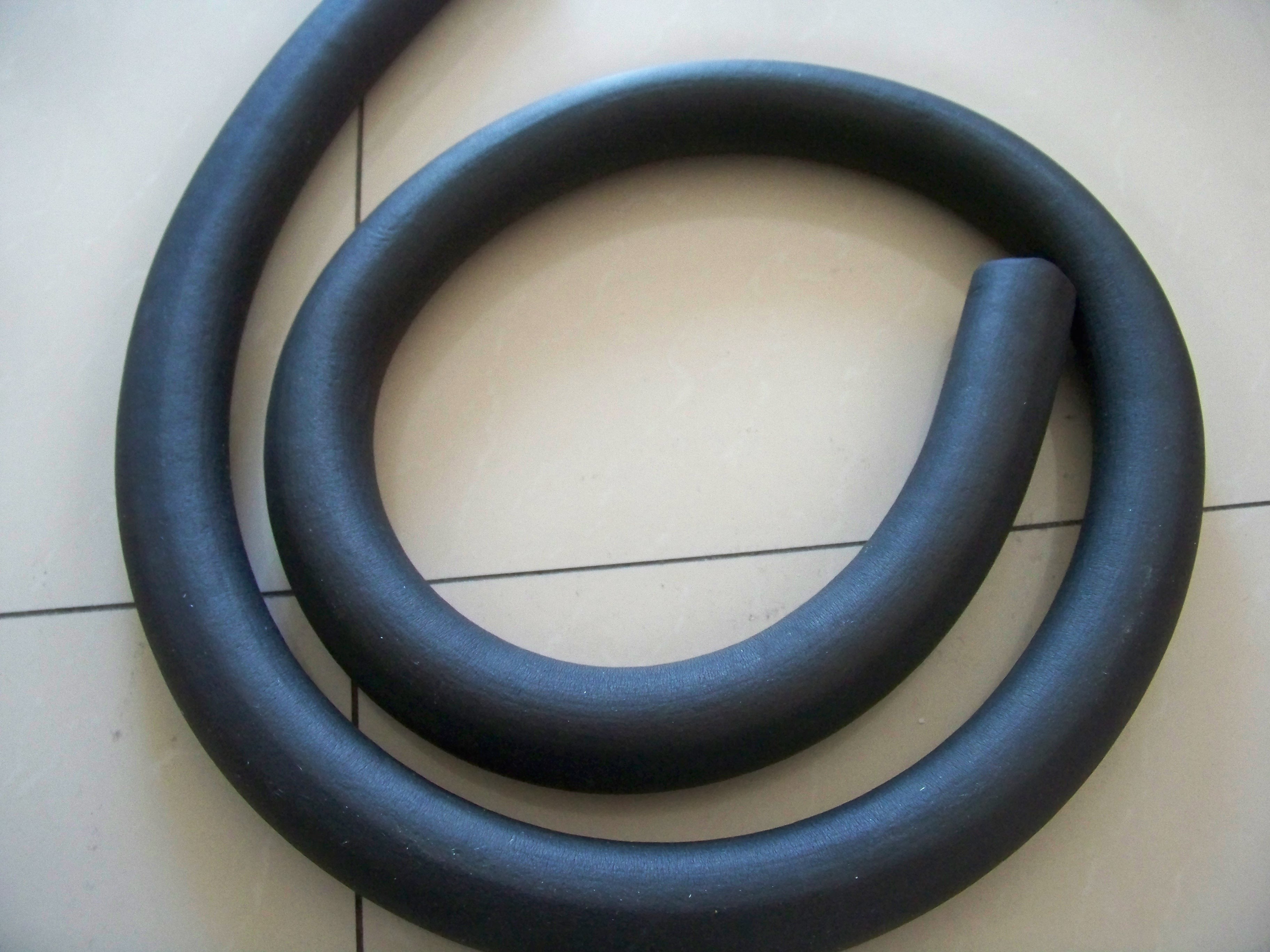

Product introduction of CLASS B0 RUBBER PLASTIC INSULATION PIPE
FANRYN CLASS B0 Rubber Plastic Insulation Pipe is a premium thermal insulation material. It offers comparable thermal performance to CLASS B1 products while providing superior energy efficiency, excellent moisture resistance, and an extended service life. The product is available in standard charcoal grey.
Product Specification of CLASS B0 RUBBER PLASTIC INSULATION PIPE
Tube inner diameter (mm) |
9mm thick (1.8m/piece) |
15mm thick (2m/piece) |
20mm thick (2m/piece) |
25mm thick (2m/piece) |
|||||
Size (mm*mm) |
Piece |
Piece/box |
Size (mm*mm) |
Piece |
Size (mm*mm) |
Piece |
Size (mm*mm) |
Piece |
|
6 |
6*9 |
180 |
180 |
|
|
|
|
|
|
10 |
10*9 |
140 |
140 |
10*15 |
80 |
10*20 |
70 |
|
|
13 |
13*9 |
120 |
100 |
13*15 |
80 |
13*20 |
50 |
|
|
16 |
16*9 |
100 |
95 |
16*15 |
60 |
16*20 |
50 |
|
|
19 |
19*9 |
100 |
80 |
19*15 |
60 |
19*20 |
40 |
|
|
22 |
22*9 |
100 |
70 |
22*15 |
60 |
22*20 |
40 |
22*25 |
30 |
25 |
25*9 |
80 |
55 |
25*15 |
60 |
25*20 |
30 |
25*25 |
25 |
28 |
28*9 |
60 |
50 |
28*15 |
50 |
28*20 |
30 |
28*25 |
25 |
32 |
32*9 |
60 |
45 |
|
|
|
|
|
|
34 |
|
|
|
34*15 |
40 |
34*20 |
30 |
34*25 |
25 |
43 |
43*9 |
50 |
30 |
43*15 |
30 |
43*20 |
25 |
43*25 |
20 |
48 |
48*9 |
50 |
28 |
48*15 |
30 |
48*20 |
25 |
48*25 |
20 |
54 |
54*9 |
50 |
25 |
|
|
|
|
|
|
60 |
60*9 |
50 |
20 |
60*15 |
30 |
60*20 |
20 |
60*25 |
15 |
76 |
|
|
|
76*15 |
25 |
76*20 |
15 |
76*25 |
15 |
89 |
|
|
|
|
|
89*20 |
15 |
89*25 |
15 |
108 |
|
|
|
|
|
108*20 |
15 |
108*25 |
10 |
Main application of CLASS B0 RUBBER PLASTIC INSULATION PIPE
Refrigerant Piping: Insulation of all chilled-water and hot-water pipes to maintain thermal efficiency and prevent condensation.
Air Distribution Systems: Insulation of all supply, return, and fresh air ducts to minimize energy loss and control noise.
Drainage Systems: Insulation of condensate drain pipes to prevent surface sweating and potential water damage.
Advantage of CLASS B0 RUBBER PLASTIC INSULATION PIPE
Peak Efficiency: Ultra-low thermal conductivity for maximum energy savings and environmental compliance.
Built to Last: Superior fire resistance and moisture protection ensure long-term safety and system durability.
Installation Ease: Lightweight and pliable for a quick, clean fit that reduces labor hours and looks professional.
Packing:
1. PE plastic bag
2. PE plastic bag +carton
Note: OEM is acceptable
FAQ:
Q1: How to guarantee the quality of the products?
A1: Our experienced QC team will inspect product's quality in every process
Q2: How to pack exported goods?
A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).
Q3: What is your lead time for one 40HC container order?
A3: Usual 10-15 work days after placing order.
Q4: What is your advantage on glass wool blanket?
A4: Our glass wool blanket can be freely cut in construction according the shape required.
Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?
A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
