خانه > محصولات> پشم معدنی عایق گرما> Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting
Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting
اطلاعات پایه
محل منبع: چین
نام تجاری: FANRYN
جزئیات بسته بندی: کیسه پلاستیکی
زمان تحویل: 15 روز کاری
شرایط پرداخت: t/t
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
دمای کاربرد: -200 درجه سانتیگراد تا 650 درجه سانتیگراد مقاومت شیمیایی: مقاوم در برابر بیشتر مواد شیمیایی
تأثیرات زیست محیطی: غیر سمی و سازگار با محیط زیست قدرت فشاری: 100-200 kPa
نفوذپذیری بخار: 0.5-1.0 ng/pa.sm ثبات ابعادی: کمتر از 1 ٪
مادی: پشم مواد معدنی هدایت حرارتی: 0.035 w/mk
جذب صدا: 0.9-1.0 NRC استحکام کششی: 50-100 kPa
روش نصب: پر کردن ، خفاش ها ، یا رول مقاومت در برابر آتش: کلاس A1
جذب آب: کمتر از 1 ٪ تراکم: 10-200 کیلوگرم در متر مکعب
برجسته کردن:

pre-formed rock wool pipe shells

,

mineral wool thermal insulation

,

easy install pipe insulation

توضیحات محصول

Product introduction of the rock wool pipe


Save time and labor costs on your next project with Fanryn's pre-formed Rock Wool Pipe shells. Designed for simplicity and efficiency, they are the perfect solution for both new construction and retrofit applications, providing immediate thermal and fire protection straight out of the bag.


Product details of the rock wool pipe

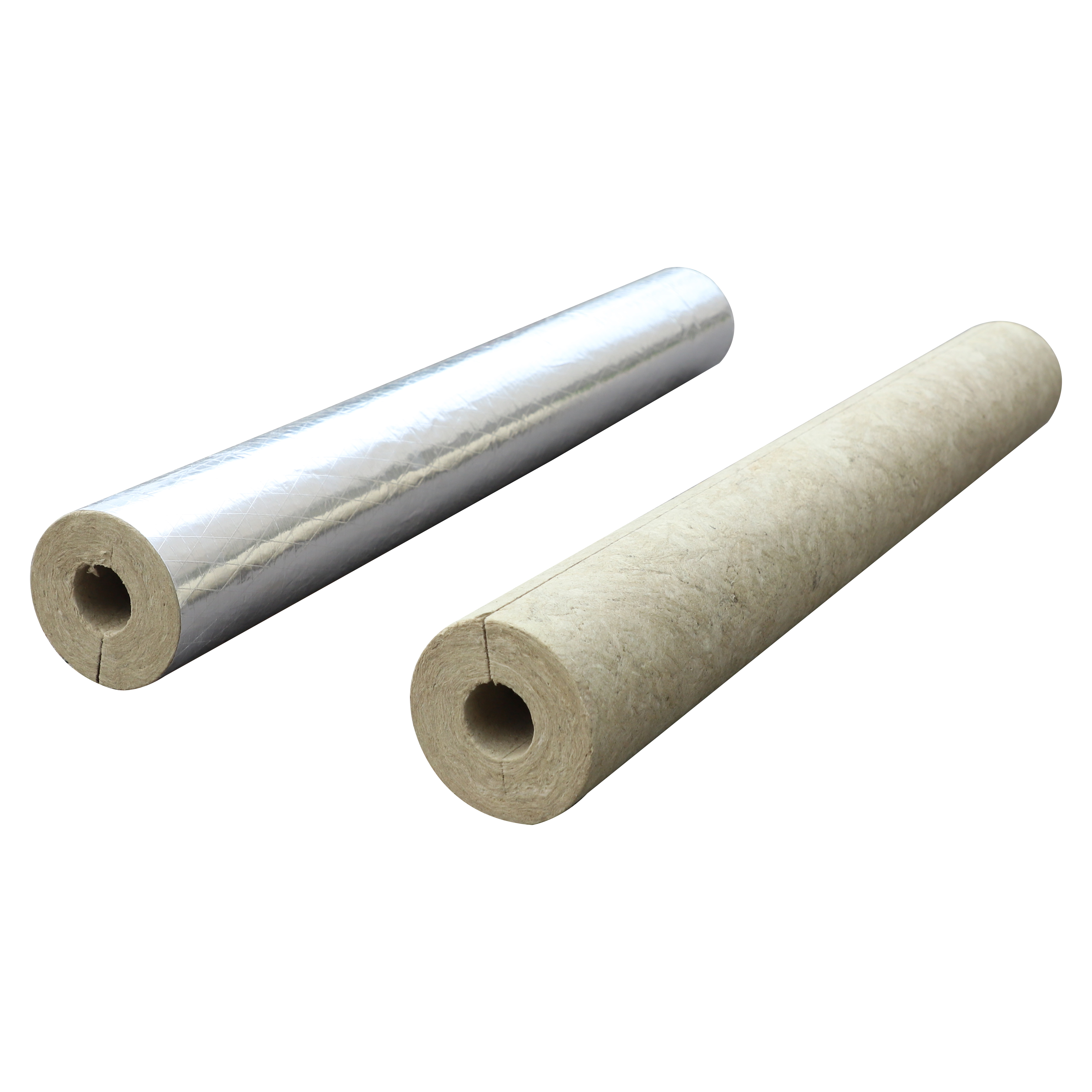

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting 0

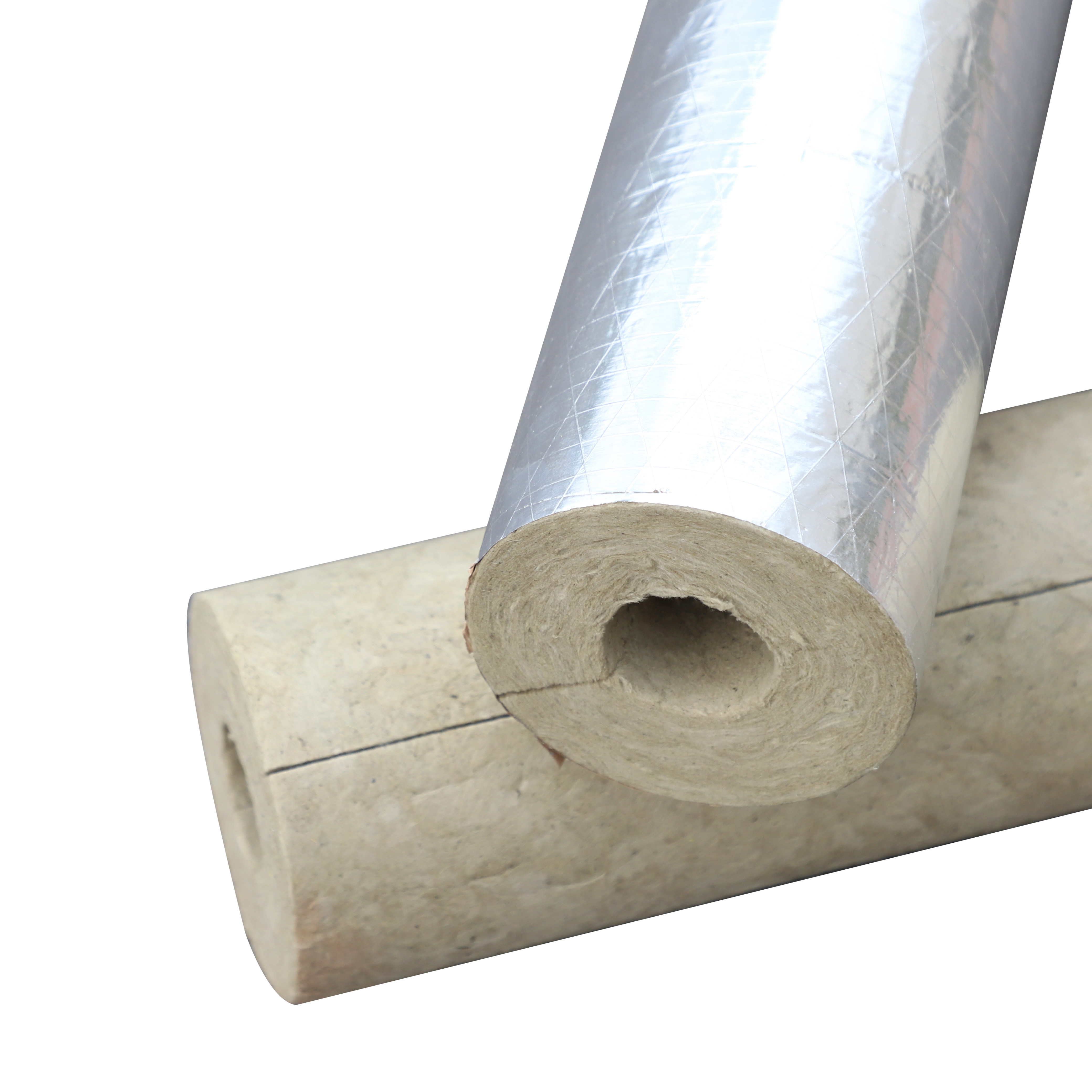

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting 1

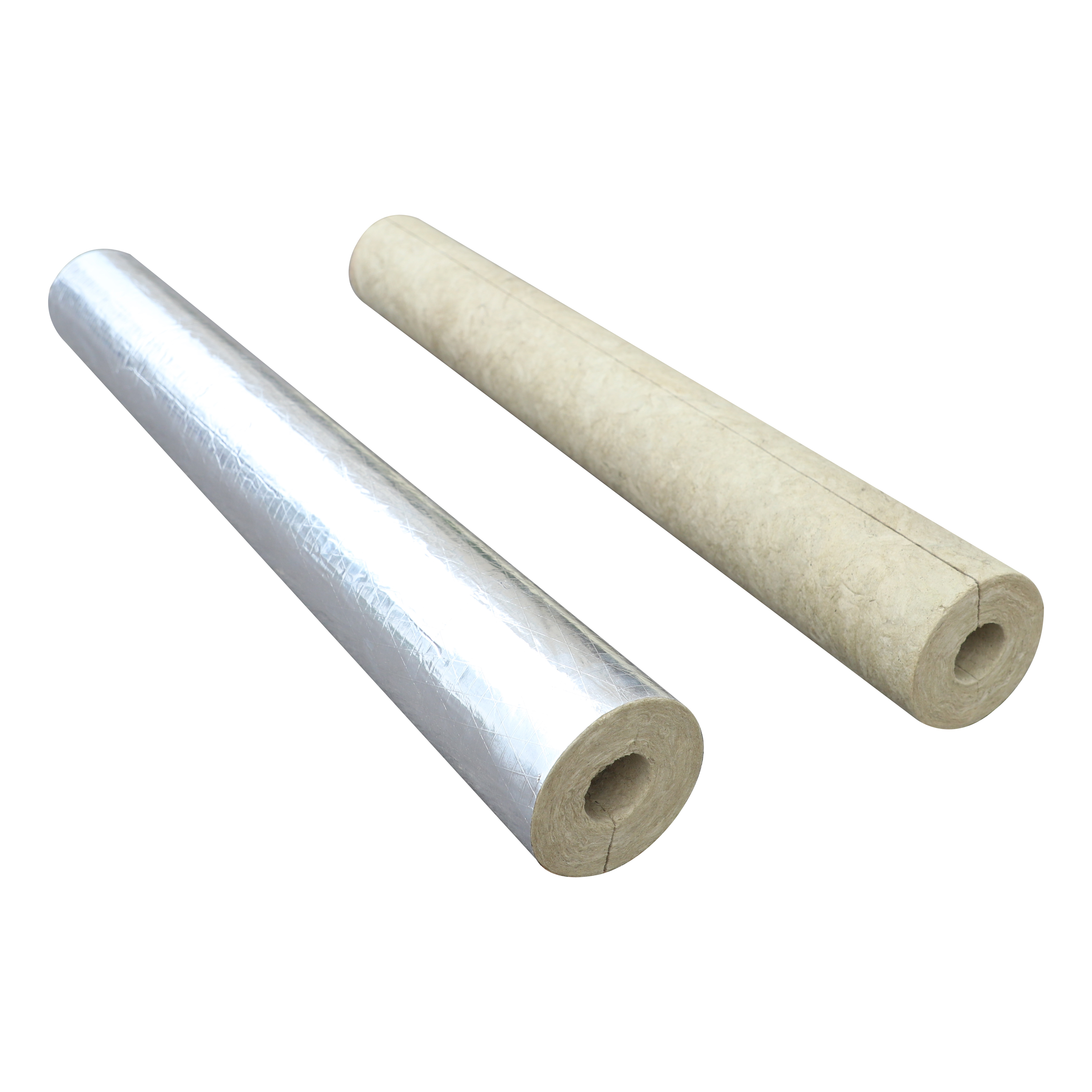

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting 2



Product parameter of the rock wool pipe


Properties

Specifications

Standards

Density Tolerance

±15%

GB/T 19686-2005

Fire Performance

Non-Combustible

GB/T 5464-1999

Reaction to fire Class A1

GB/T 8624-2006

Thermal Conductivity

 (W/mK, at70±5℃)

≤0.044

GB/T 10295

Fiber Diameter

7(+/-1)um

GB/T 5480. 4

Shot Content

(shot size＞0.25mm)

≤12%



Eccentricity of Pipe shell

≤5mm





Product size of the rock wool pipe



DIA

Thickness (mm)

inch

mm

25

30

40

50

60

70

80

90

100

120

150

1/2’’

22

●

●



●















3/4’’

27

●

●

●

●

●

●

●









1’’

34

●

●

●

●

●

●

●









1-1/4’’

43

●

●

●

●

●

●

●

●

●





1-1/2’’

48

●

●

●

●

●

●

●

●

●





2’’

60

●

●

●

●

●

●

●

●

●





2-1/2’’

76

●

●

●

●

●

●

●

●

●





3’’

89

●

●

●

●

●

●

●

●

●





3-1/2’’

108

●

●

●

●

●

●

●

●

●





4’’

114

●

●

●

●

●

●

●

●

●

●



5’’

140



●

●

●

●

●

●

●

●

●

●

6’’

169



●

●

●

●

●

●

●

●

●

●

8’’

219





●

●

●

●

●

●

●

●

●

10’’

273





●

●

●

●

●

●

●

●

●

12’’

325





●

●

●

●

●

●

●

●

●

14’’

356







●

●

●

●

●

●

●

●

15’’

381







●

●

●

●

●

●

●

●

16’’

406







●

●

●

●

●

●

●

●

18’’

456







●

●

●

●

●

●

●

●

19’’

483











●

●

●

●

●

●

20’’

508











●

●

●

●

●

●

22’’

558













●

●

●

●

●

24’’

610













●

●

●

●

●





Product feature of the rock wool pipe


  • Pre-Formed for Efficiency: Simply fit the two halves around the pipe and secure. Drastically reduces installation time compared to blanket wraps.

  • Minimal Waste: Precise sizing and easy cutting ensure material is used efficiently, saving money.

  • Reusable for Retrofits: Can be easily removed and re-installed during system maintenance or modifications.

  • Comprehensive Size Range: Available for pipe diameters from 1/2" (22mm) to 24" (610mm) and thicknesses from 25mm to 150mm.

  • Consistent Quality: Precise manufacturing ensures uniform thickness and density across every piece.




Product application of the rock wool pipe


  • Quick insulation for plumbing, heating, and industrial piping in new building projects.

  • Maintenance and retrofit projects in factories, plants, and commercial buildings.

  • Insulating complex pipe networks with valves and fittings.


Production packing of the rock wool pipe

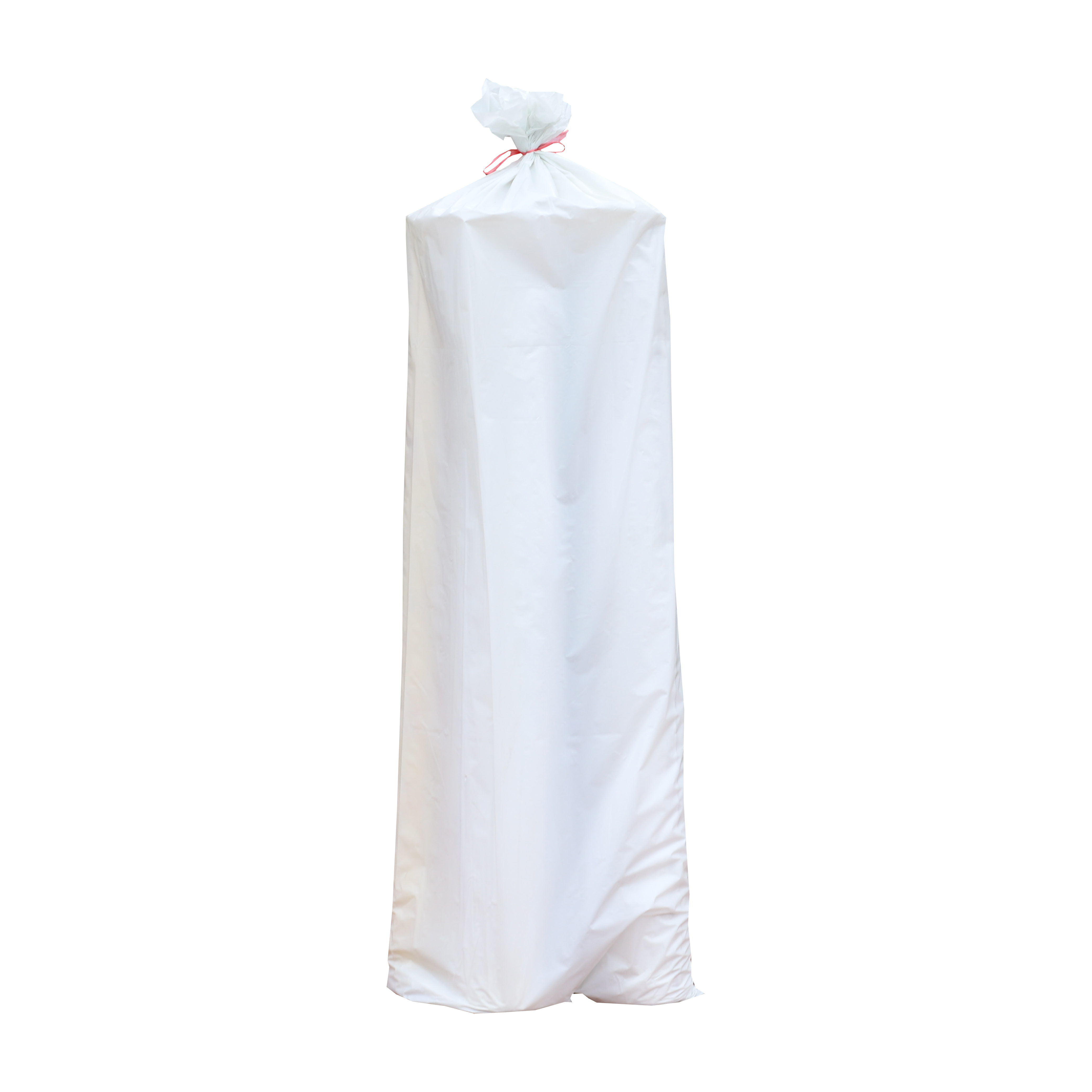

Plastic bag

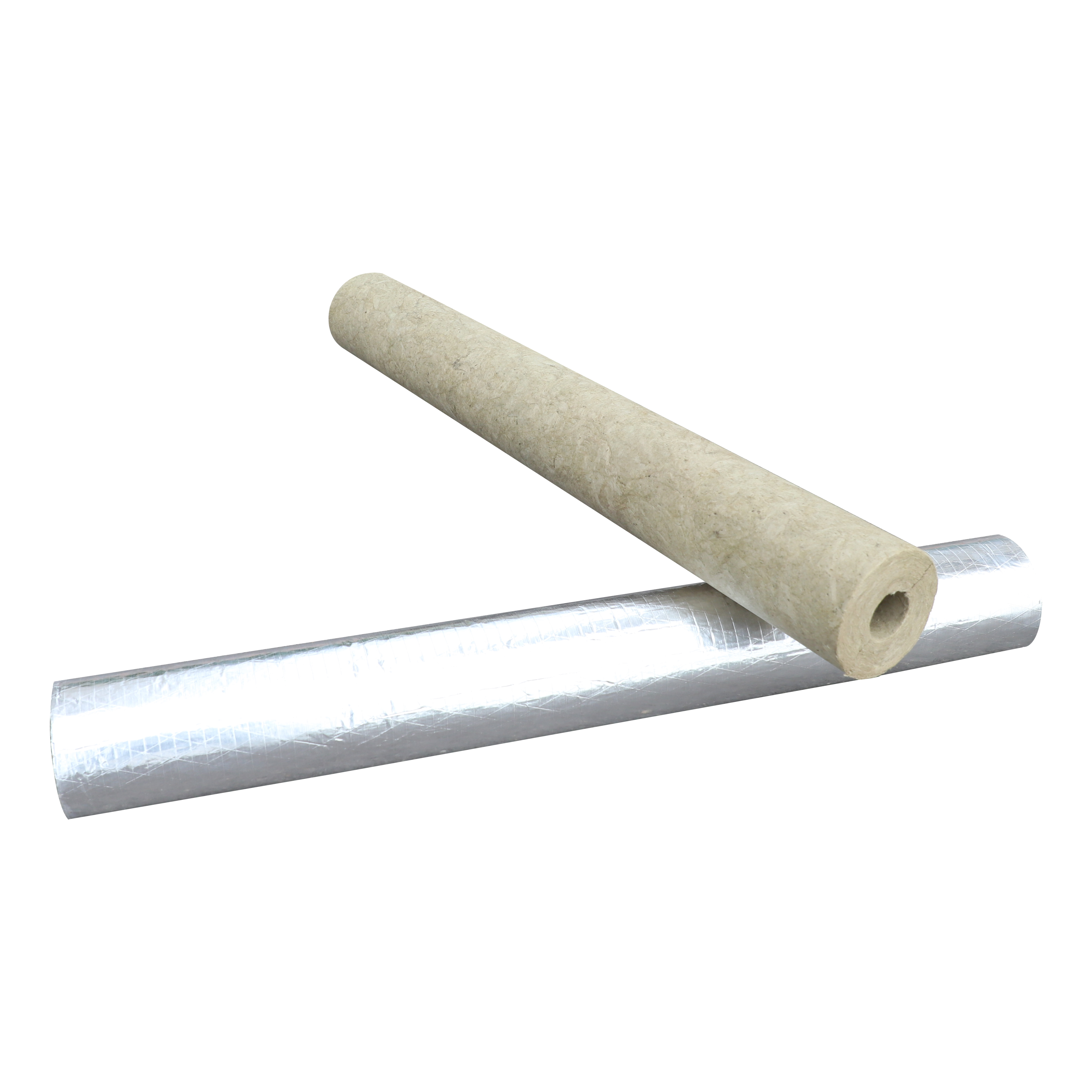

Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting 3  Pre-Formed Rock Wool Pipe Shells for Easy Installation and Retrofitting 4



FAQ:


Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process



Q2: How to pack exported goods?

A2: Plastic bag (Standard Export Packing).



Q3: what is your lead time for one 40HC container order?

A3: Usual 15-20 work days after placing order.



Q4: What is your advantage on rock wool pipe?

A4: Special product with special specification can be made to order.



Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
