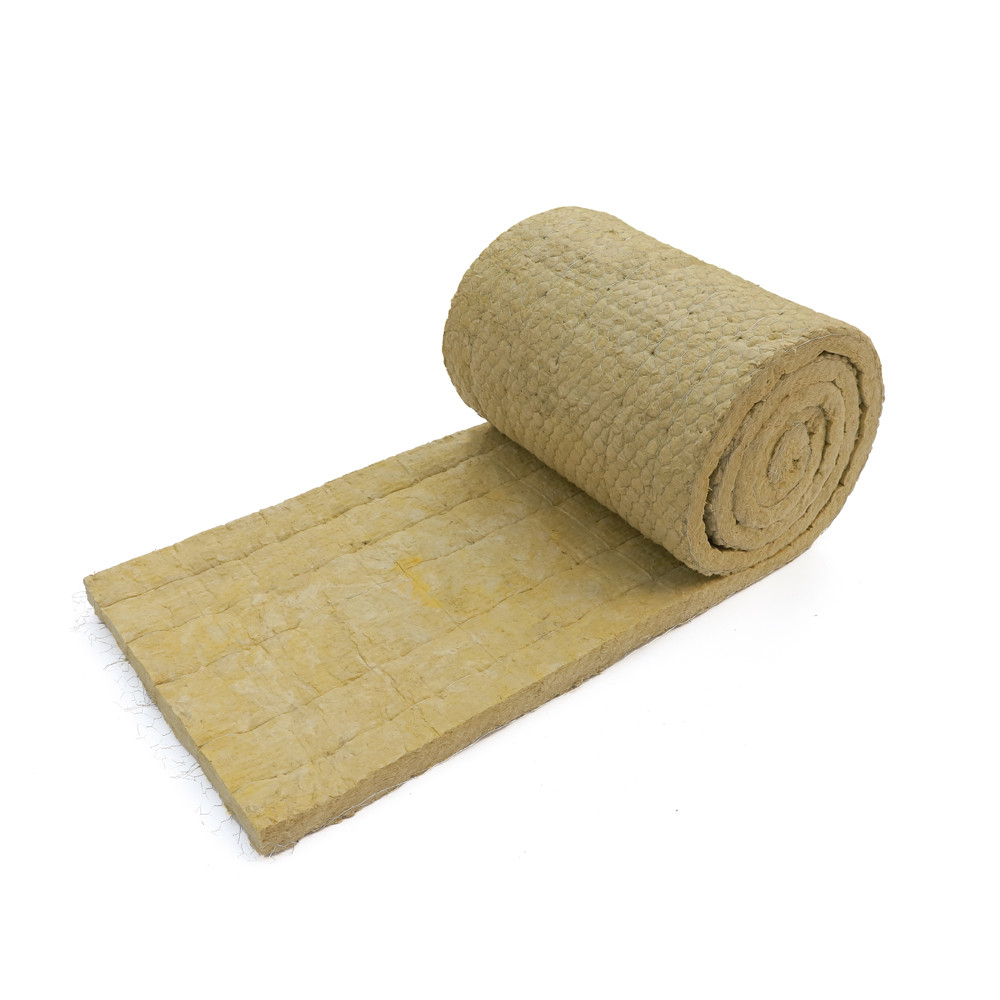

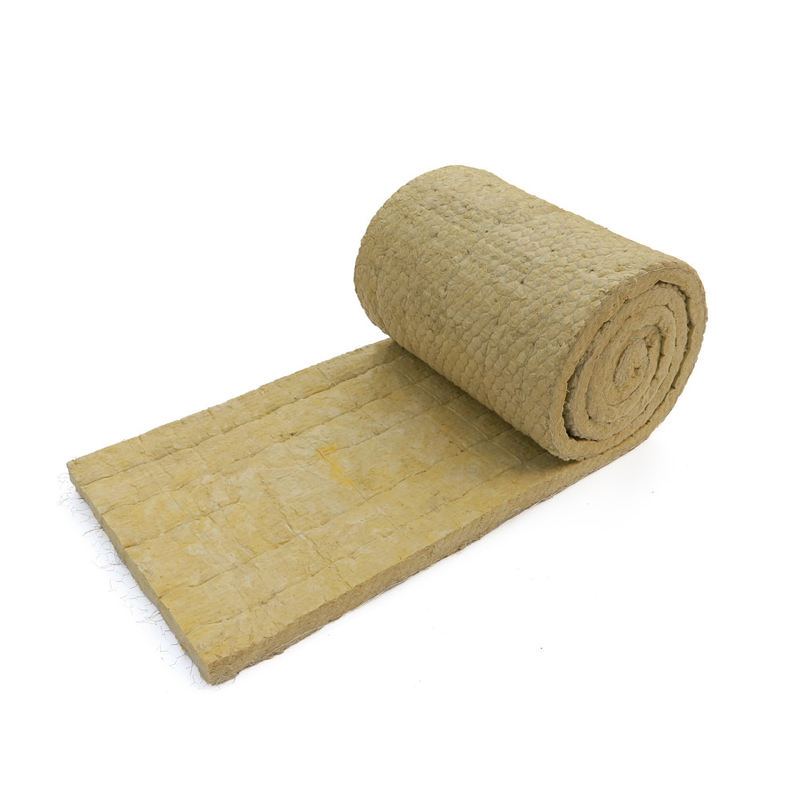

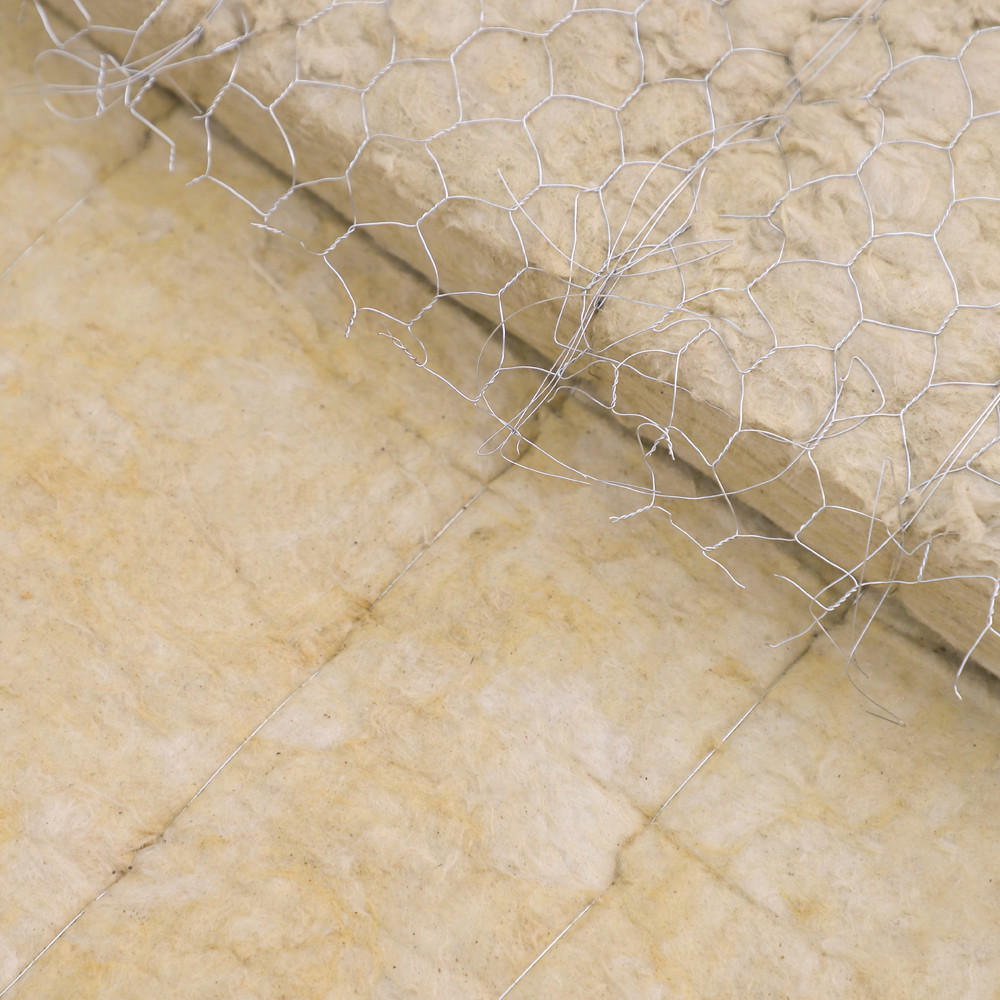

80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel

اطلاعات پایه
محل منبع: چین
نام تجاری: FANRYN
مقدار حداقل تعداد سفارش: کانتینر 1*40 فوت
جزئیات بسته بندی: کیسه های پلاستیکی
زمان تحویل: 7-10 روز کاری
شرایط پرداخت: T/T
اطلاعات تکمیلی
مقاوم در برابر آتش: کلاس A عملکرد آکوستیک: عالی بود
رسانایی حرارتی: 0.034-0.041 W/mK مقاومت در برابر مواد شیمیایی: خوبه
جذب آب: ≤ 1٪ مقاومت در برابر رطوبت: عالی بود
ثبات ابعادی: ≤ 1٪ مواد: پشم معدنی
غیر قابل احتراق: A دوستدار محیط زیست: آره
رنگ: رنگ قهوه ای جذب صدا: 0.75-1.25 NRC
مقاومت فشاری: ≥ 40 کیلو پاسکال ضریب اسیدیته: 1.6
قدرت کششی: ≥ 7 کیلو پاسکال
برجسته کردن:

80 Mm Building Insulation Material

,

Mineral Wool Blanket 80mm


توضیحات محصول

Mineral Wool Blanket

1_02.jpg80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 1

Technical Data
Properties Blanket Standards
Density Tolerance ±10% GB/T 19686-2005



Fire Performance



Non-Combustible GB/T 5464-1999
Reaction to fire Class A1 GB/T 8624-2006
Thermal Conductivity(W/mK,at70±5℃) ≤0.044 GB/T 10295
Fiber Diameter 7(+/-1)um GB/T 5480. 4
Shot Content(shot size>0.25mm) ≤12% -
Moisture Content ≤0.5% -
Organic Matter Content ≤4% -
Melting Point >1000℃ -



Application of rock wool:


Industrial rock wool insulation is mainly used in industrial storage tanks, boilers, heat exchangers and other

industrial equipment. It can also be used for the insulation, fire protection and flame retardancy of ship bulk

heads and ceilings. Rock wool felt is mainly used for thermal insulation of equipment with complex shapes

and relatively high operating temperatures. Rock wool insulation tape is mainly used for the insulation of

large-diameter pipes, storage tanks and other equipment.



Advantage:

  • Thermal Insulation
  • Fire Safety
  • Acoustic Control
  • No Corrosion
  • Environmental friendly
  • Moisture Resistance
  • Energy Conservation & Emissions Reduction

Specification:

Product Blanket
Density (kg/m3) 60-100
Size :L x W (mm) 600X5000
Thickness (mm) 30-150


80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 3





80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 4





80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 5

80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 6







Product introduction of the stone wool Blanket

FANRYN Stone wool blanket is made from natural rocks such as basalt and limestone. The rocks are melted in

a cupola at temperature of >1450, and the molten lava is fiberized by a spinner. The inorganic fibers are bonded

together using a thermosetting resin to form the final product which is cut into suitable sizes for easy handling and

installation.



STONE WOOL blanket is widely used in public, commercial and residential buildings as well as industrial plants,

for applications such as roofing, external wall, partition wall and floating floor to provide fire protection, thermal insulation,

acoustic control and condensation control.

80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 7

80 Mm Building Insulation Material Mineral Wool Blanket With Wire Steel 8

rock wool blanket

rock wool blanket
