| هدایت حرارتی: | 0.031-0.042 W/m·K | تراکم: | 10-12 کیلوگرم در متر مکعب |
|---|---|---|---|
| تاثیرات زیست محیطی: | قابل بازیافت، سازگار با محیط زیست | مقاومت در برابر آتش: | غیر قابل احتراق، کلاس A1 |
| ضریب جذب صوت: | 1.03 روش Reverberation Product 24kg/m3 2000hz | جذب آب: | <1% |
| نام محصول: | پشم شیشه عایق حرارتی | برنامه: | عایق حرارتی ساختمان، تجهیزات صنعتی |
| ضخامت: | 25-200 میلی متر | مواد: | پشم شیشه |
| رنگ: | زرد، قهوه ای، قرمز | مقاومت در برابر دما: | -270 درجه سانتیگراد تا 350 درجه سانتیگراد |
| ابعاد: | متفاوت است (به عنوان مثال، تخته های 600x1200 میلی متر) |
Glass wool is an inherently non-combustible material that delivers both thermal and acoustic insulation. When exposed to fire, it does not emit toxic gases, positioning it as one of the most environmentally responsible insulation solutions for all building applications.

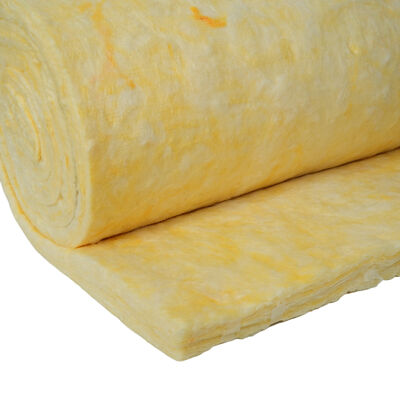

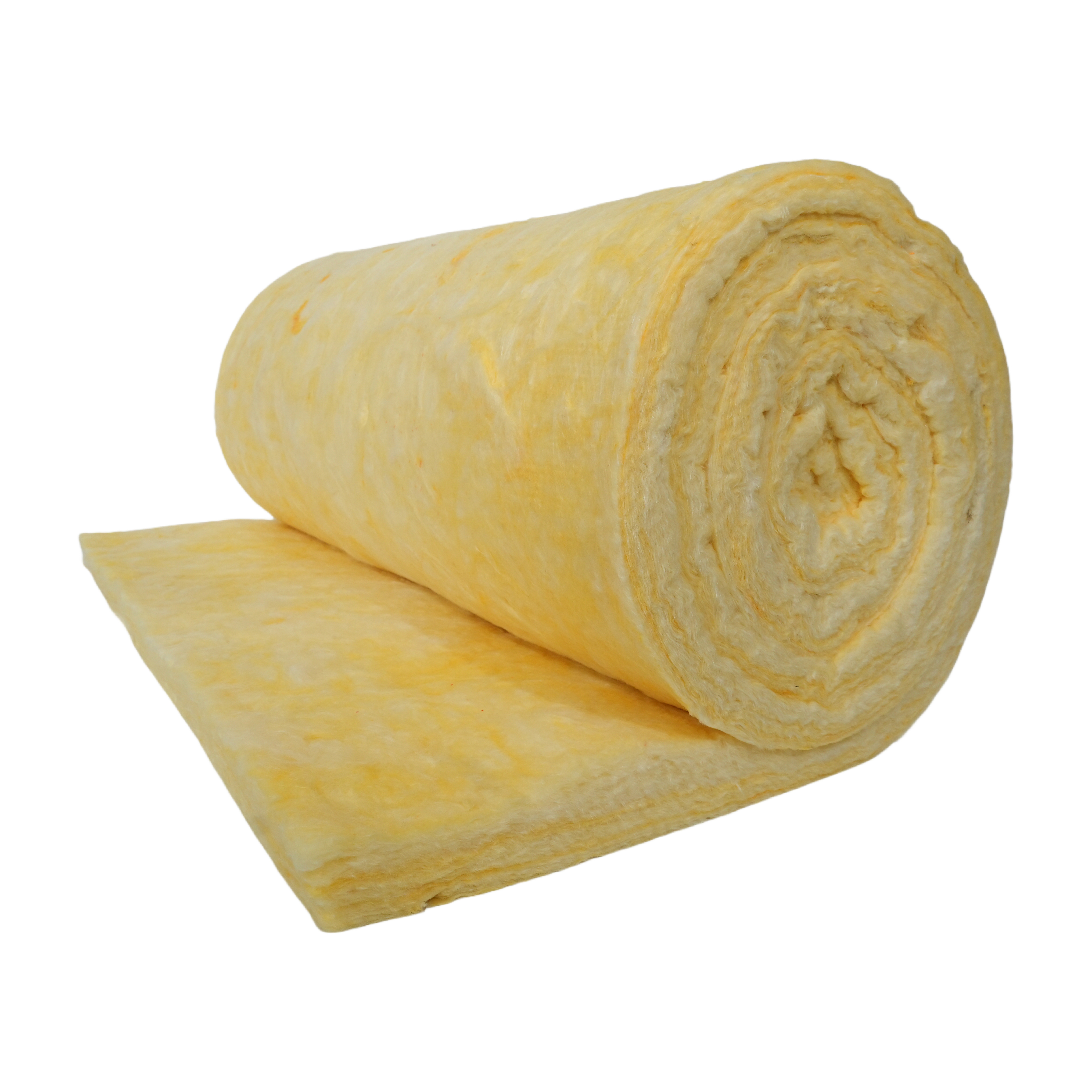

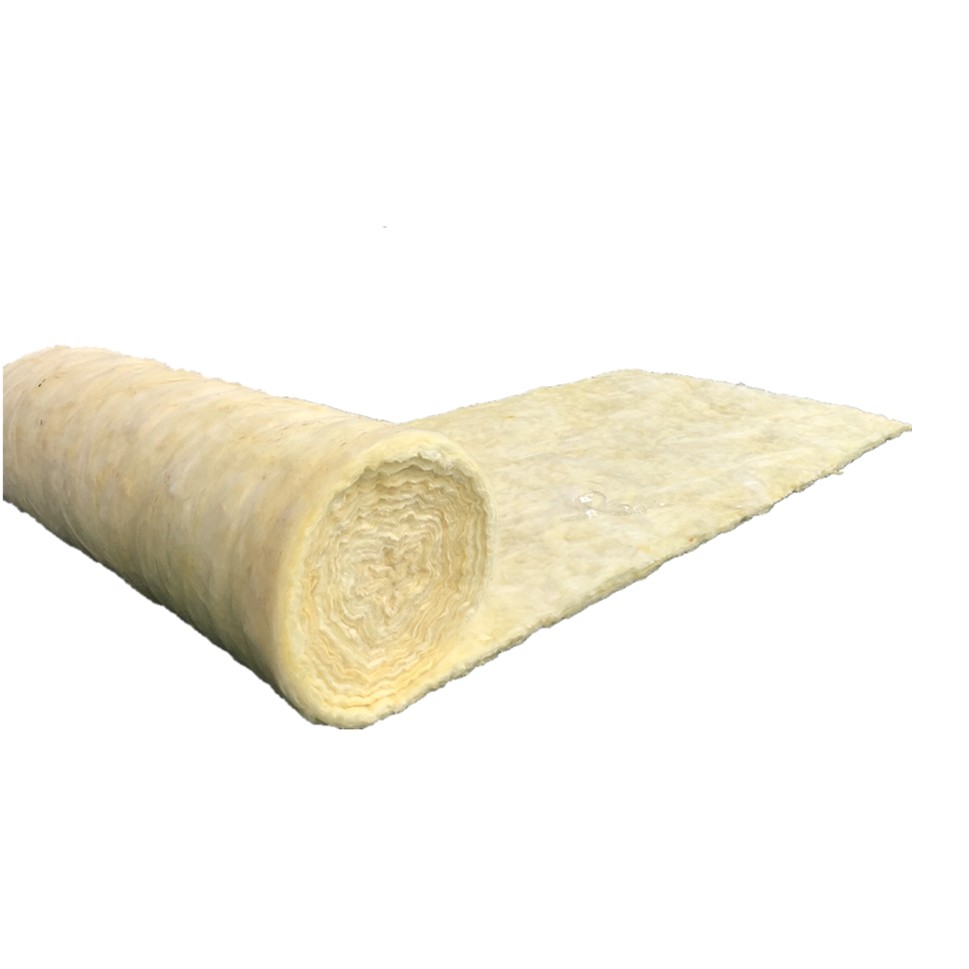

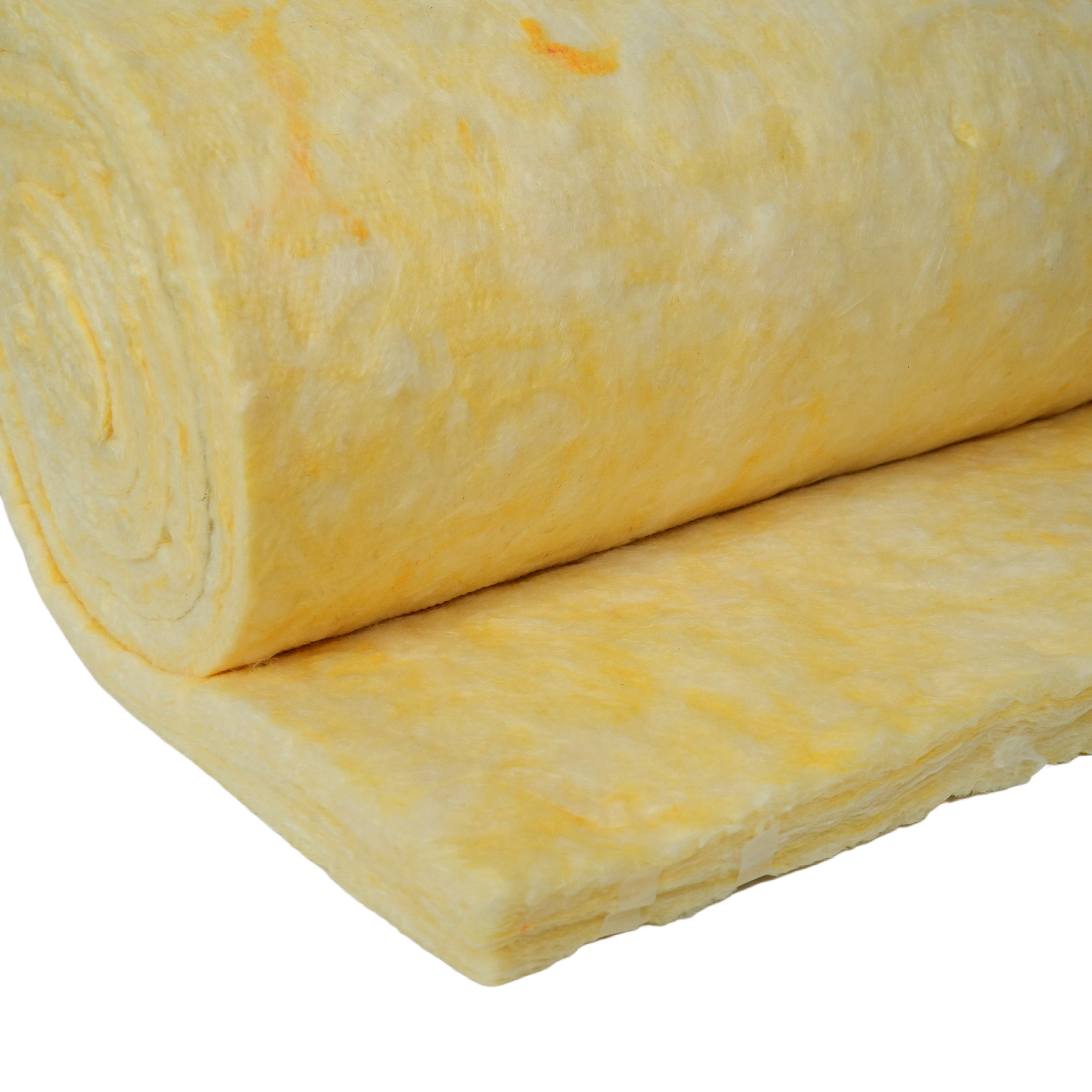

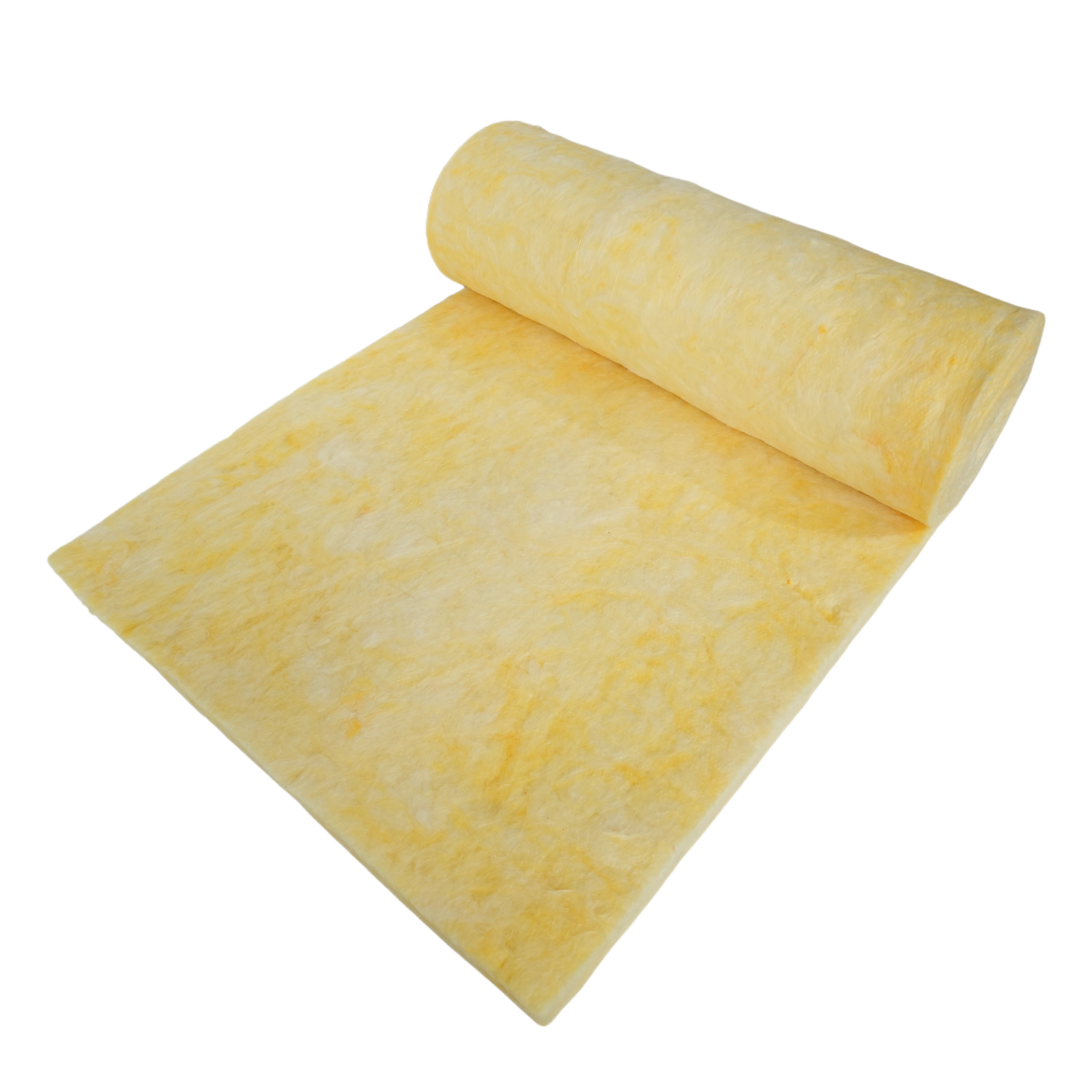

Designed specifically for the Chile market, this low-density glass wool blanket offers excellent compressibility for easy transport and installation, while maintaining reliable thermal performance. Despite its low density, it never compromises on quality—thanks to our use of premium-grade raw materials and advanced production technology.
| Item | Unit | Index | Standard |
|---|---|---|---|
| Density | kg/m³ | 10-100 | GB/T 5480.3-1985 |
| Average fiber dia. | µm | 5.5 | GB/T 5480.4-1985 |
| Water content | % | ≤1 | GB/T 3007-1982 |
| Grade of combustibility | Non-combustible Grade A | GB 8624-1997 | |
| Reshrinking temp | ℃ | ≥250 | GB/T 11835-1998 |
| Thermal conductibility | w/m.k | 0.038-0.06 | GB/T 10294-1988 |
| Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
| Moisture rate | % | ≤5 | GB/T 16401-1986 |
| Sound absorption coefficient | 1.03 product reverberation method 24kg/m³ 2000HZ | GBJ 47-83 | |
| Slag inclusion content | % | ≤0.3 |
| Density (kg/m³) | Thickness (m) | Length (m) | Width (m) | Rolls/Packing |
|---|---|---|---|---|
| 10-48 | 0.025-0.2 | 5-30 | 0.6 | 2 rolls |
| 1.1 | 1 roll | 2 rolls overlapping | |||
| 1.15 | 1 roll | 2 rolls overlapping | |||
| 1.2 | 1 roll | 2 rolls overlapping | |||
| 1.25 | 1 roll | 2 rolls overlapping |
Best for:
Also suitable for:
Note: OEM is acceptable
