Industrial-Grade Glass Wool Blanket | For HVAC, Walls, and Partition Insulation

اطلاعات پایه
محل منبع: چین
نام تجاری: FANRYN
جزئیات بسته بندی: کیسه پلاستیکی
زمان تحویل: 10 روز کاری
شرایط پرداخت: T/T
اطلاعات تکمیلی
استفاده: سقف مقاومت در برابر رطوبت: > 98%
ضریب جذب صدا: 0.75-1.25 مزیت: جذب صدا و کاهش سر و صدا
رنگ: زرد دما در حال تغییر شکل: 250-400
اندازه: 20000*600*25 میلی متر عایق حرارتی: عالی
وزن حجمی: 10-48 کیلوگرم در متر مکعب تراکم: 10-48kg/m3
عرض: 600-1200 میلی متر دمای کاری: 650 ℃
مقاومت شیمیایی: خوب میزان رطوبت: 5 ٪
گنجاندن: 0.3 ٪
برجسته کردن:

Industrial glass wool insulation blanket,HVAC glass wool blanket insulation,Glass wool blanket for wall insulation

,

HVAC glass wool blanket insulation

,

Glass wool blanket for wall insulation


توضیحات محصول

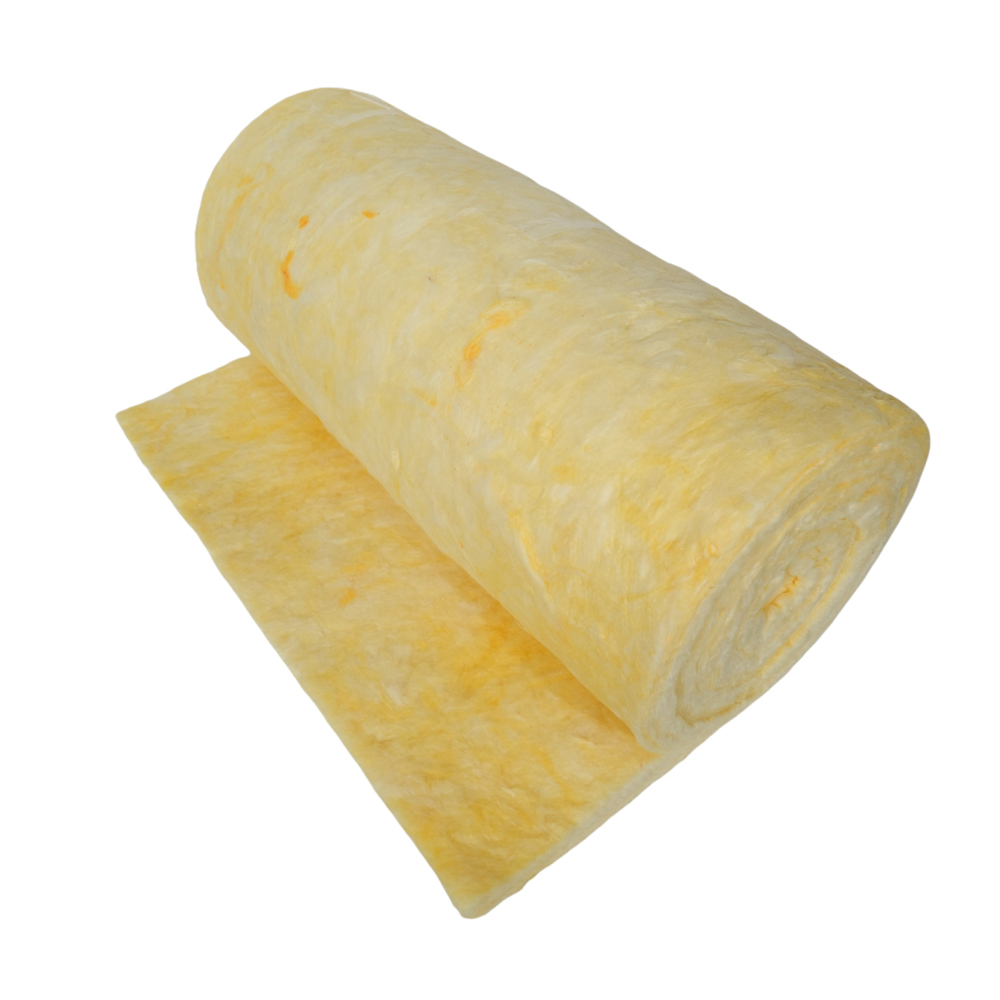

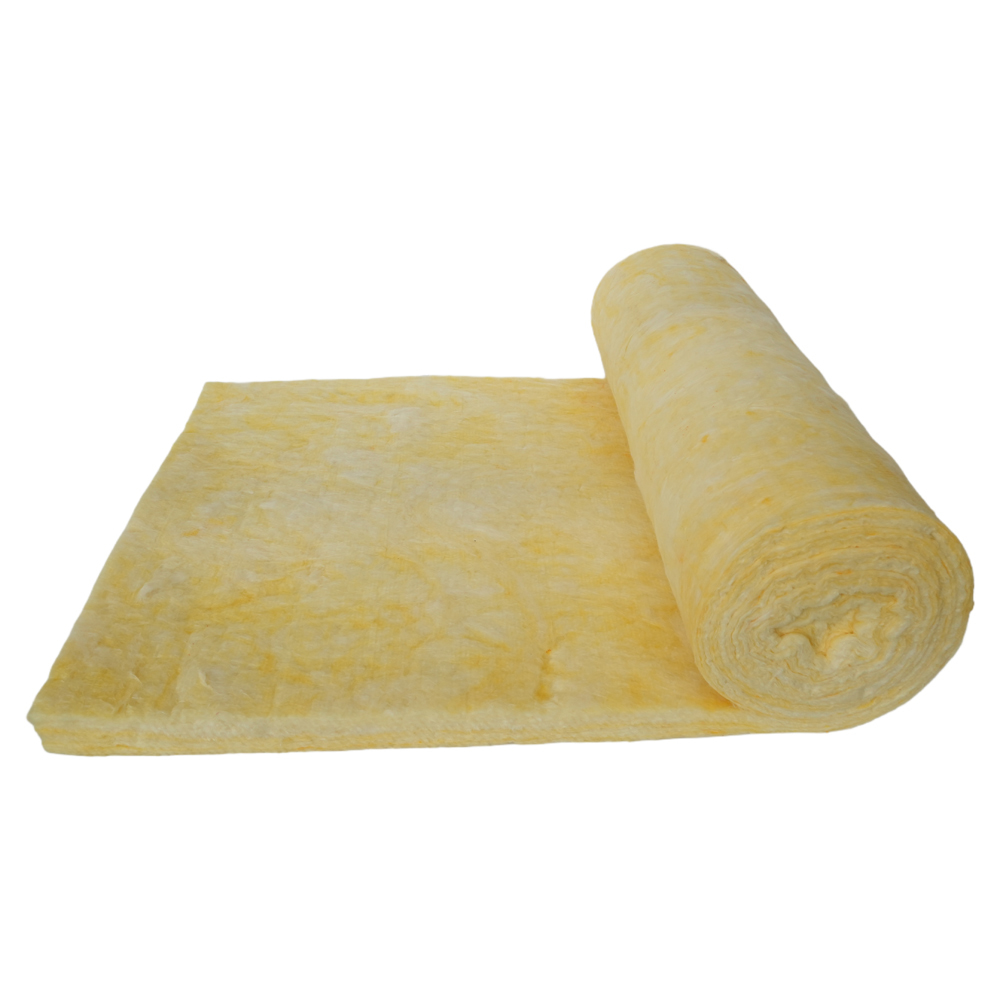

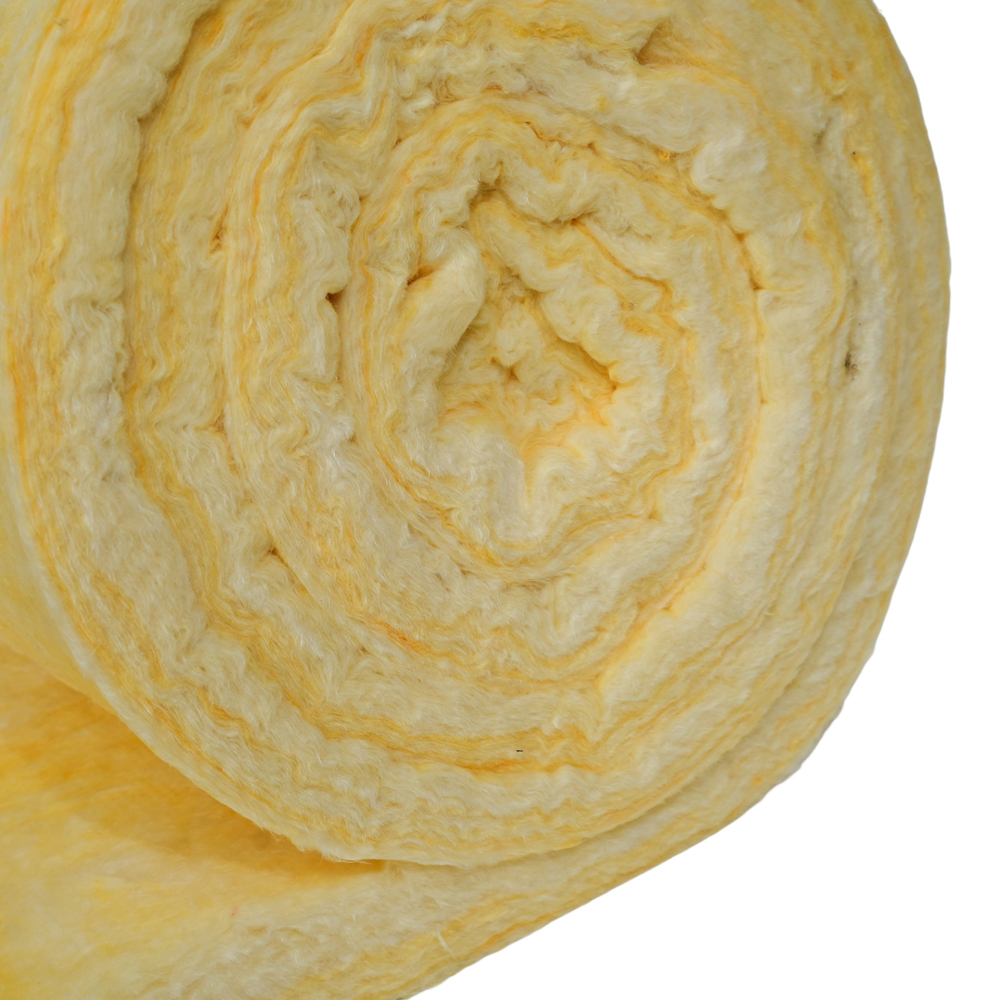

Glass Wool Blanket

Product introduction of the Glass Wool Blanket

Built to meet the rigorous demands of industrial and commercial construction, FANRYN's Glass Wool Blanket is a versatile and durable insulation solution. It combines thermal and acoustic properties with robust physical characteristics, making it ideal for a wide range of applications from HVAC systems to indoor partition walls and train compartments.

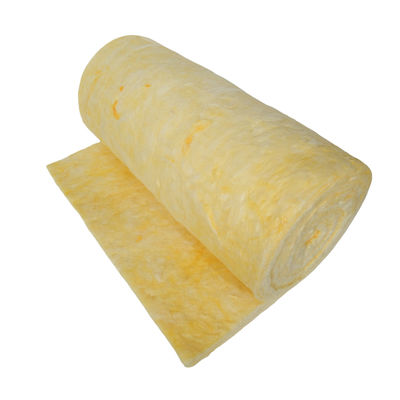

Industrial-Grade Glass Wool Blanket | For HVAC, Walls, and Partition Insulation 0

Industrial-Grade Glass Wool Blanket | For HVAC, Walls, and Partition Insulation 1

Product parameter of the glass wool blanket

Item Unit Index Standard
Bulk density kg/m3 10-48 GB/T 5480.3-1985
Average fiber dia. µm 5.5 GB/T 5480.4-1985
Water content % ≤1 GB/T 3007-1982
Grade of combustibility
Non-combustible Grade A GB 8624-1997
Preshrinking temp ≥250 GB/T 11835-1998
Thermal conductibility w/m.k 0.031-0.043 GB/T 10294-1988
Hydrophobicity % ≥98.2 GB/T 10299-1988
Moisture rate % ≤5 GB/T 16401-1986
Sound absorption coefficient
1.03 product reverberation method 24kg/m32000HZ GBJ 47-83
Slag inclusion content % ≤0.3

Product size of the glass wool blanket

Density(kg/m3) Thickness(m) Length (m) Width (m) Rolls/packing
10-48 0.025-0.2 5-30 0.6 2 rolls
10-48 0.025-0.2 5-30 1.1 1 roll 2 rolls overlapping
10-48 0.025-0.2 5-30 1.15 1 roll 2 rolls overlapping
10-48 0.025-0.2 5-30 1.2 1 roll 2 rolls overlapping
10-48 0.025-0.2 5-30 1.25 1 roll 2 rolls overlapping

Product application of the glass wool blanket

  1. Heat preservation of wall
  2. Heat preservation of steel structure
  3. Indoor partition wall
  4. Train compartment
  5. Sound absorption and acoustical isolation

Product feature of the glass wool blanket

  • Multi-Functional Performance: Provides a 3-in-1 solution offering thermal insulation, sound absorption, and vibration damping.

  • High-Temperature Resilience: With a preshrinking temperature of ≥250°C, it is suitable for use in high-temperature environments.

  • Clean & Safe Installation: Long, bonded fibers significantly reduce fly ash and irritation during handling, ensuring a more comfortable worksite.

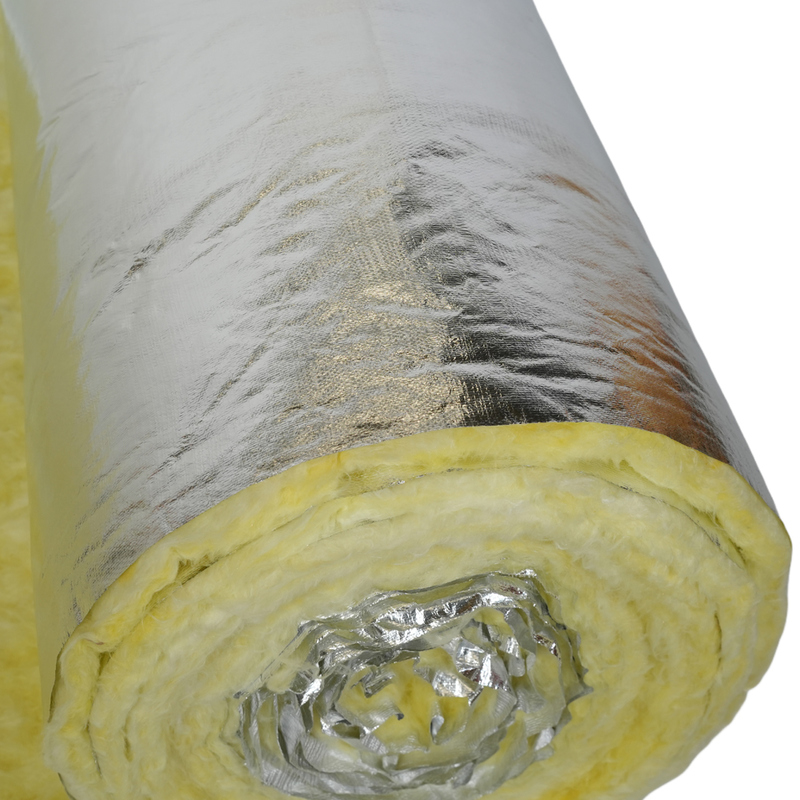

  • Customizable Facing Options: Available with various facings like Foil-Scrim-Kraft (FSK) and Alum Glass Cloth to meet specific vapor barrier or reinforced surface needs.

  • Rigorous Quality Control: Every production batch is inspected to ensure consistent density, thickness, and performance.

Production Facing For glass wool blanket

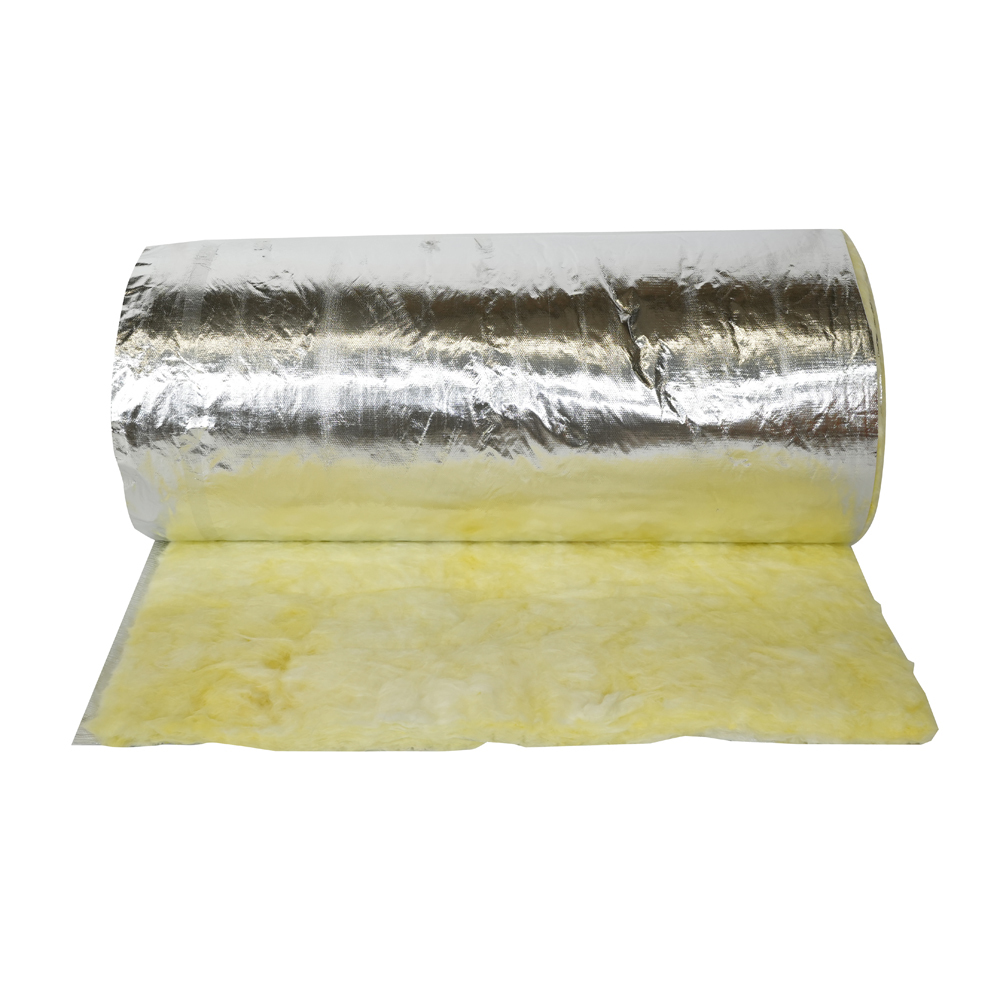

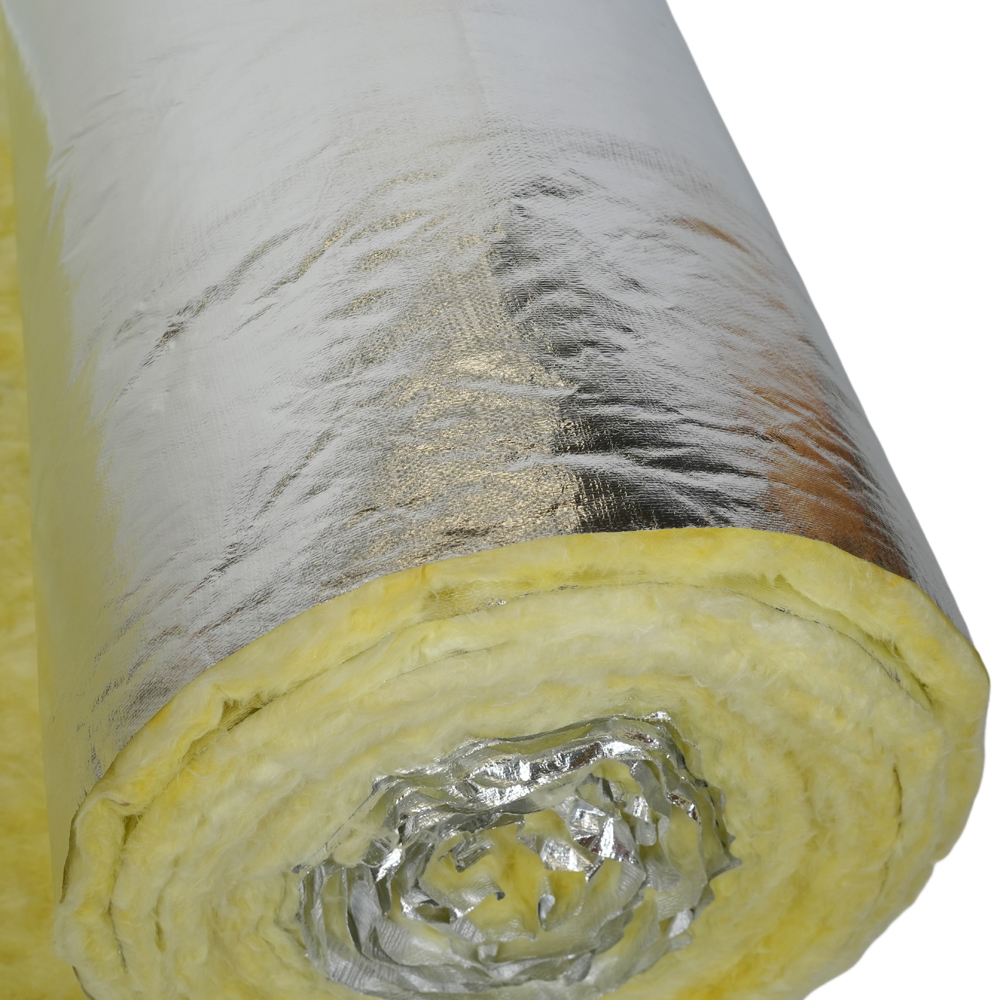

  • Foil-Scrim-Kraft Facing
  • Alum Glass Cloth Facing
  • Fiberglass Tissue

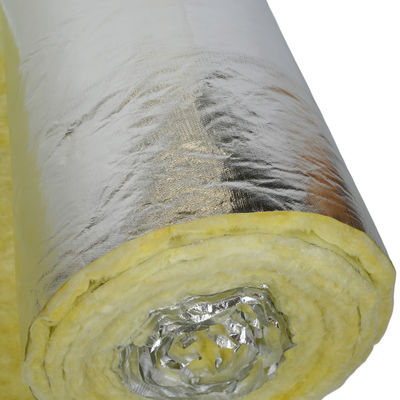

Industrial-Grade Glass Wool Blanket | For HVAC, Walls, and Partition Insulation 2

Production packing of the glass wool blanket

  1. Vacuum plastic bag +woven bag
  2. Vacuum plastic bag +woven bag +PE bag
  3. Vacuum plastic bag+ PE shrinking bag
  4. PE shrinking bag

Note: OEM is acceptable

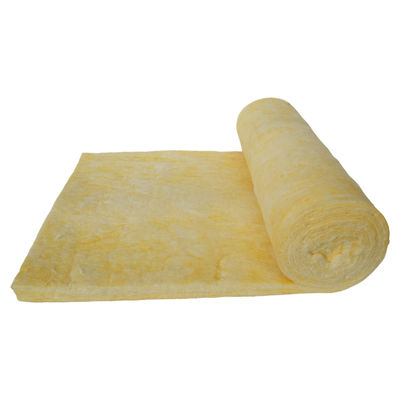

Industrial-Grade Glass Wool Blanket | For HVAC, Walls, and Partition Insulation 3  Industrial-Grade Glass Wool Blanket | For HVAC, Walls, and Partition Insulation 4

FAQ:

Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process

Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).

Q3: What is your lead time for one 40HC container order?

A3: Usual 10-15 work days after placing order.

Q4: What is your advantage on glass wool blanket?

A4: Our glass wool blanket can be freely cut in construction according the shape required.

Q5: About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A5: The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
