Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention
Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention
اطلاعات پایه
محل منبع: چین
نام تجاری: FANRYN
جزئیات بسته بندی: کیسه پلاستیکی
زمان تحویل: 15 روز کاری
شرایط پرداخت: T/T ، L/C
بهترین قیمت اکنون تماس بگیرید
اطلاعات تکمیلی
مقاومت در برابر رطوبت: دافع آب نصب آسان: سبک و انعطاف پذیر
دوام: ماندگار جذب صدا: تا 1.0 NRC
مقرون به صرفه: مقرون به صرفه امتیاز آتش سوزی: کلاس A
غیر قابل اعتماد: نمی سوزاند یا در گسترش آتش سوزی کمک نمی کند سازگار با محیط زیست: ساخته شده از مواد طبیعی
مقاومت شیمیایی: غیر مصر نوع عایق: عایق حرارتی
برنامه: عایق ساختمان تراکم: 10-100 کیلوگرم در متر مکعب
مادی: پشم مواد معدنی هدایت حرارتی: 0.035-0.045 w/mk
برجسته کردن:

glass wool pipe insulation

,

FSK faced pipe insulation

,

condensation prevention pipe insulation

توضیحات محصول

Product introduction of the glass wool pipe


Prevent surface condensation and energy loss in low-temperature piping systems with our glass wool pipe insulation. Suitable for chilled water supply, refrigeration lines, and cooling pipelines, these sections maintain consistent temperature and prevent moisture buildup. The product’s adaptability to various pipe diameters (18–529 mm) makes it a versatile choice for both industrial and civil applications.

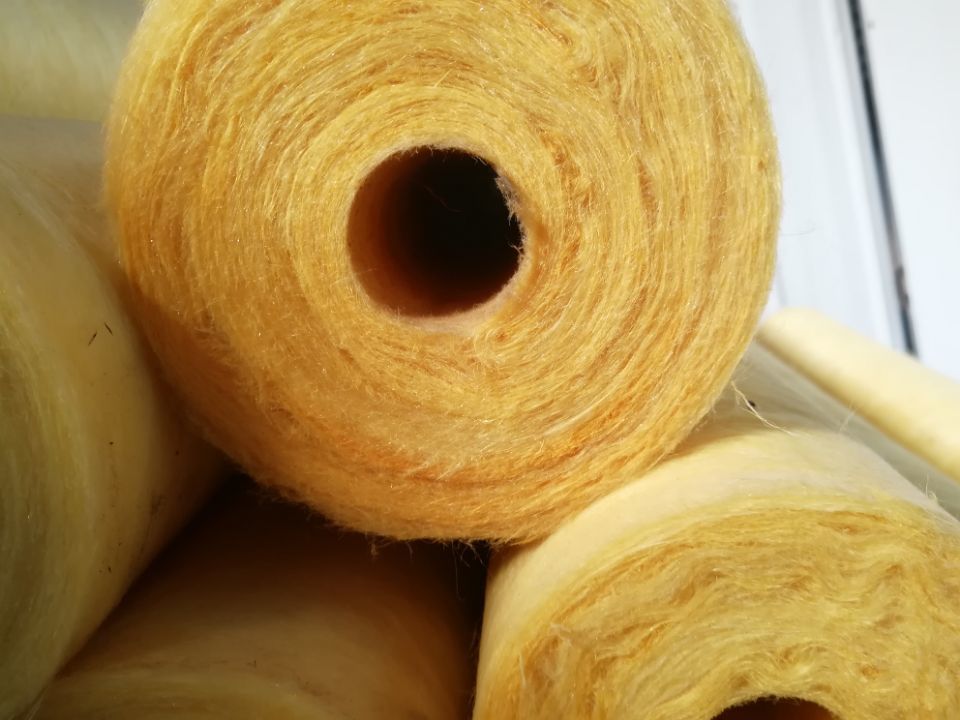

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 0

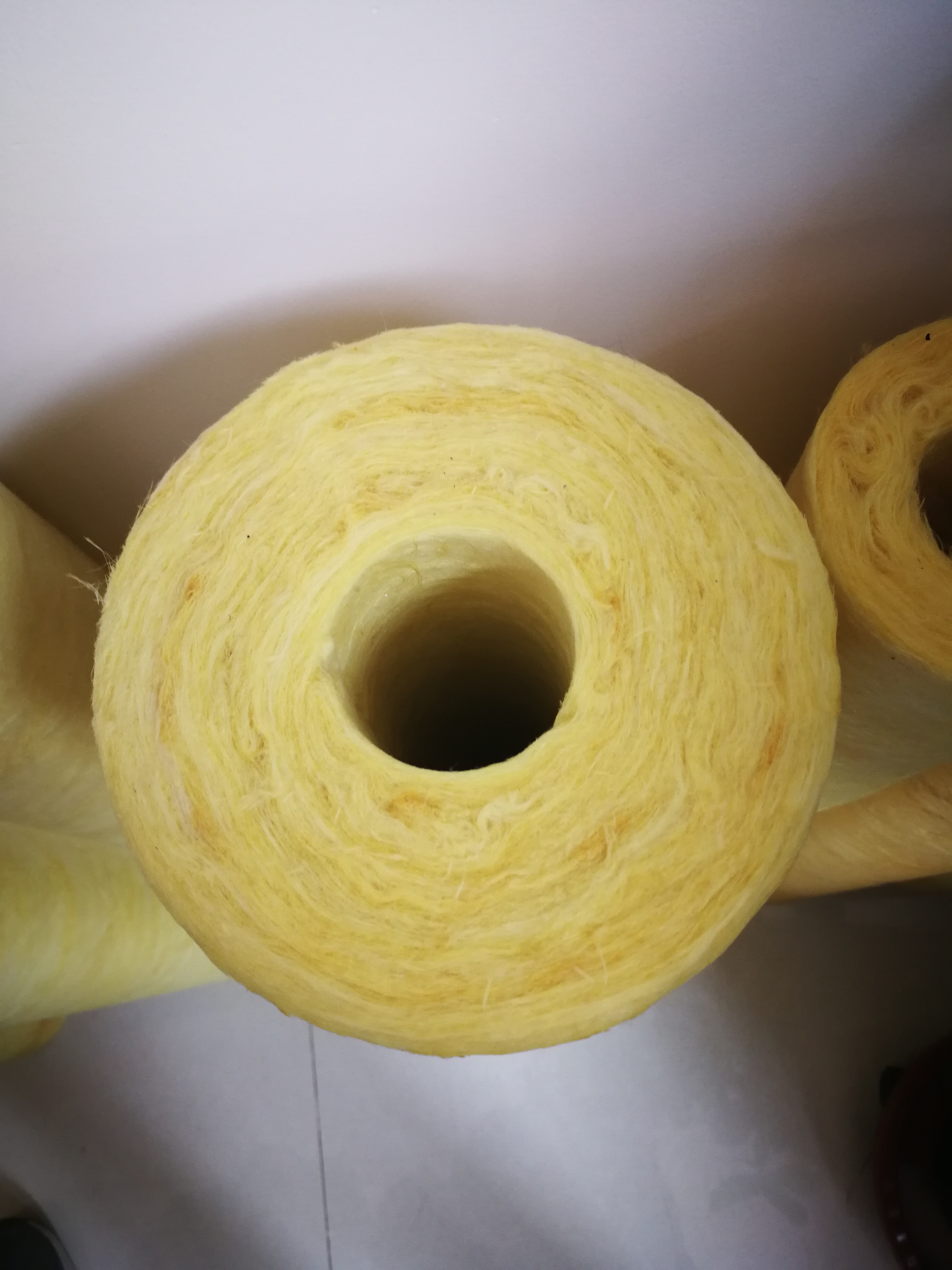

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 1

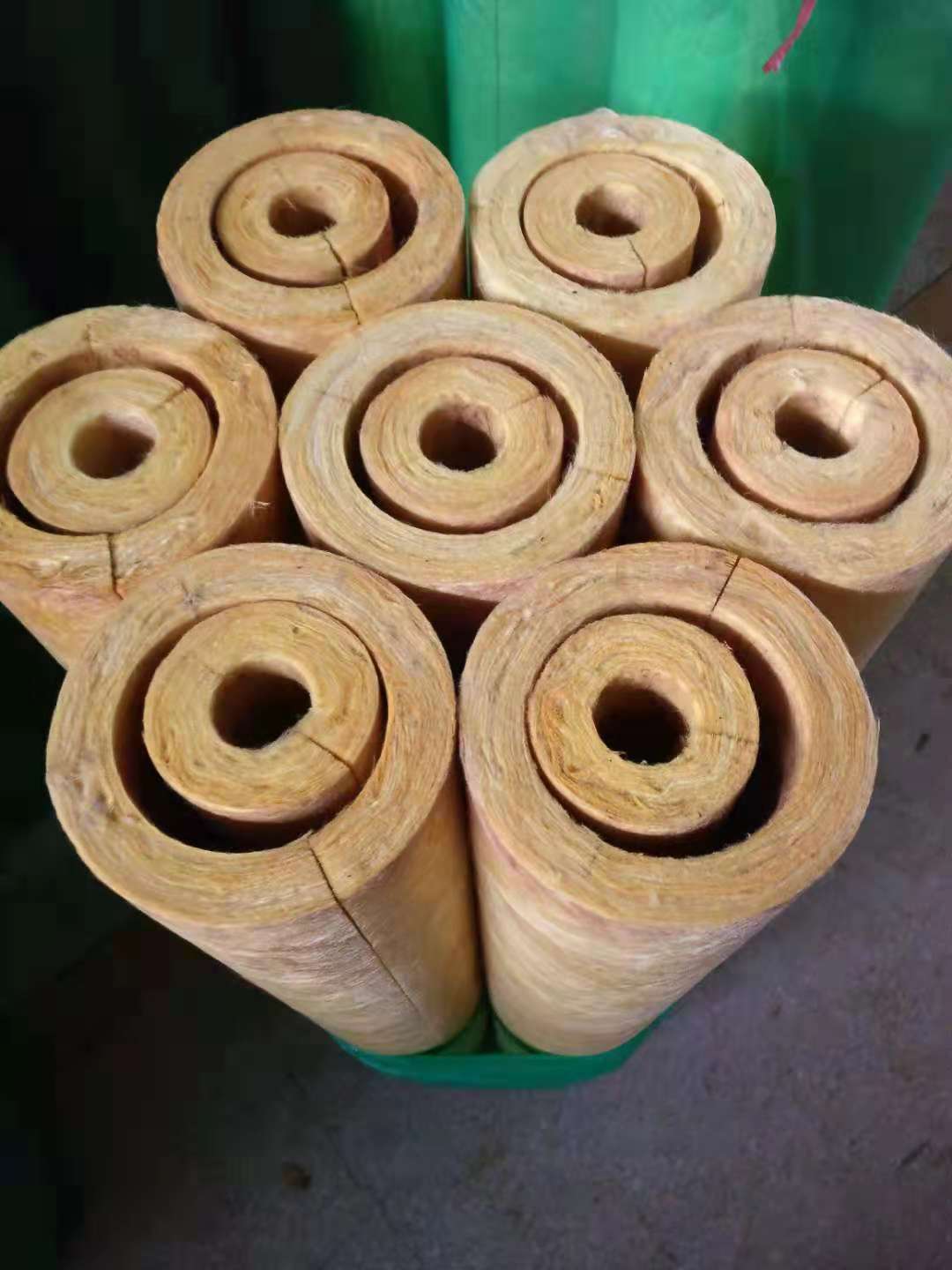

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 2







Product parameter of the glass wool Pipe







Recommend Thickness List(mm)

Pipeline System Type

The Thickness of glasswood pipe shell applied in different pipeline(mm)

Liquid Temperature Range℃

Diameter of Branches Under 50mm

Under 25mm

32-50

64-100

125-150

Above 200mm

Air System Steaming and Water System High Temperature/
High Pressure System

152-238

40

64

64

75

89

89

Medium Temperature/
Medium Pressure System

122-151

40

50

64

64

75

75

low Temperature/
low Pressure System

94-121

25

40

40

50

50

50

low Temperature System

49-93

13

25

25

40

40

40

Steaming Condensator of Watering System

Any Temperature

25

25

40

50

50

50

Equivalent Thickness of Surface Cooling Prevention

Environment
Temperature

Relative Humidity

System Working Temperature

2℃

7℃

13℃

38℃

50%-60%

25

25

25

70%

40

30

30

80%

75

60

50

85%

100

90

75

32℃

50%-60%

25

25

25

70%

25

25

25

80%

50

50

40

85%

80

75

60

27℃

50%-70%

25

25

25

80%

50

40

30

85%

75

65

50

21℃

50%-70%

25

25

25

80%

50

40

30

85%

75

50

40

If the humidity exceeds 90%, some cooling water will appeared on the surface. In this condition, adding the waterproofing coat or PVC plastic shell if necessary.



Product size of the glass wool pipe



Density(kg/m3)

Thickness(mm)

Length (mm)

Diameter (mm)

48-80

25-90

1000,1200

18-529

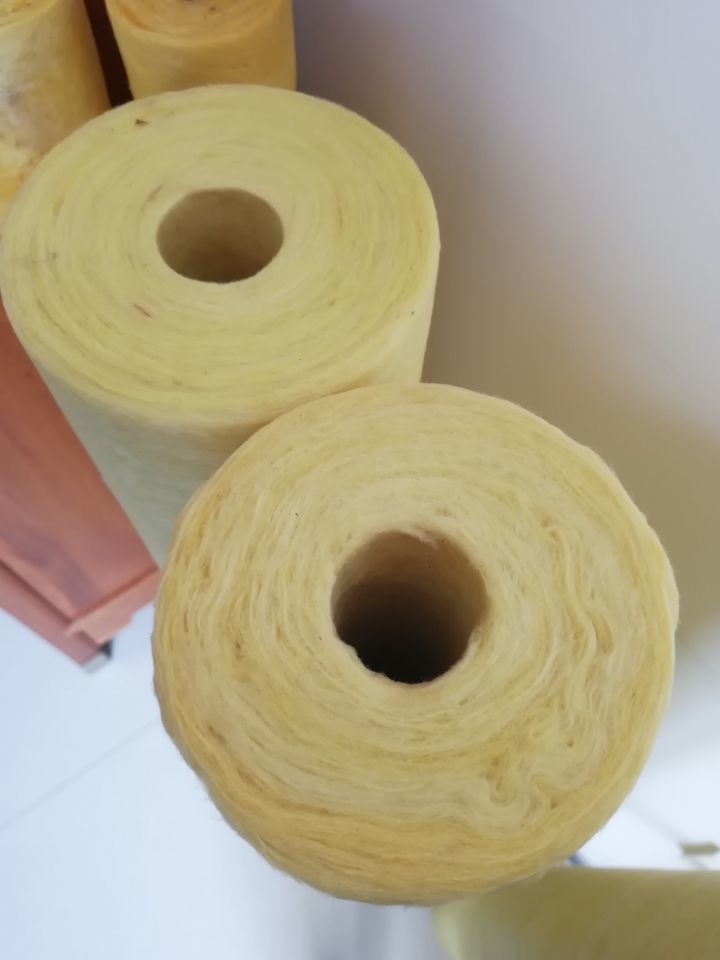

Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 3

Facing For glass wool Pipe

Foil-Scrim-Kraft Facing

Alum Glass Cloth Facing


Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 4

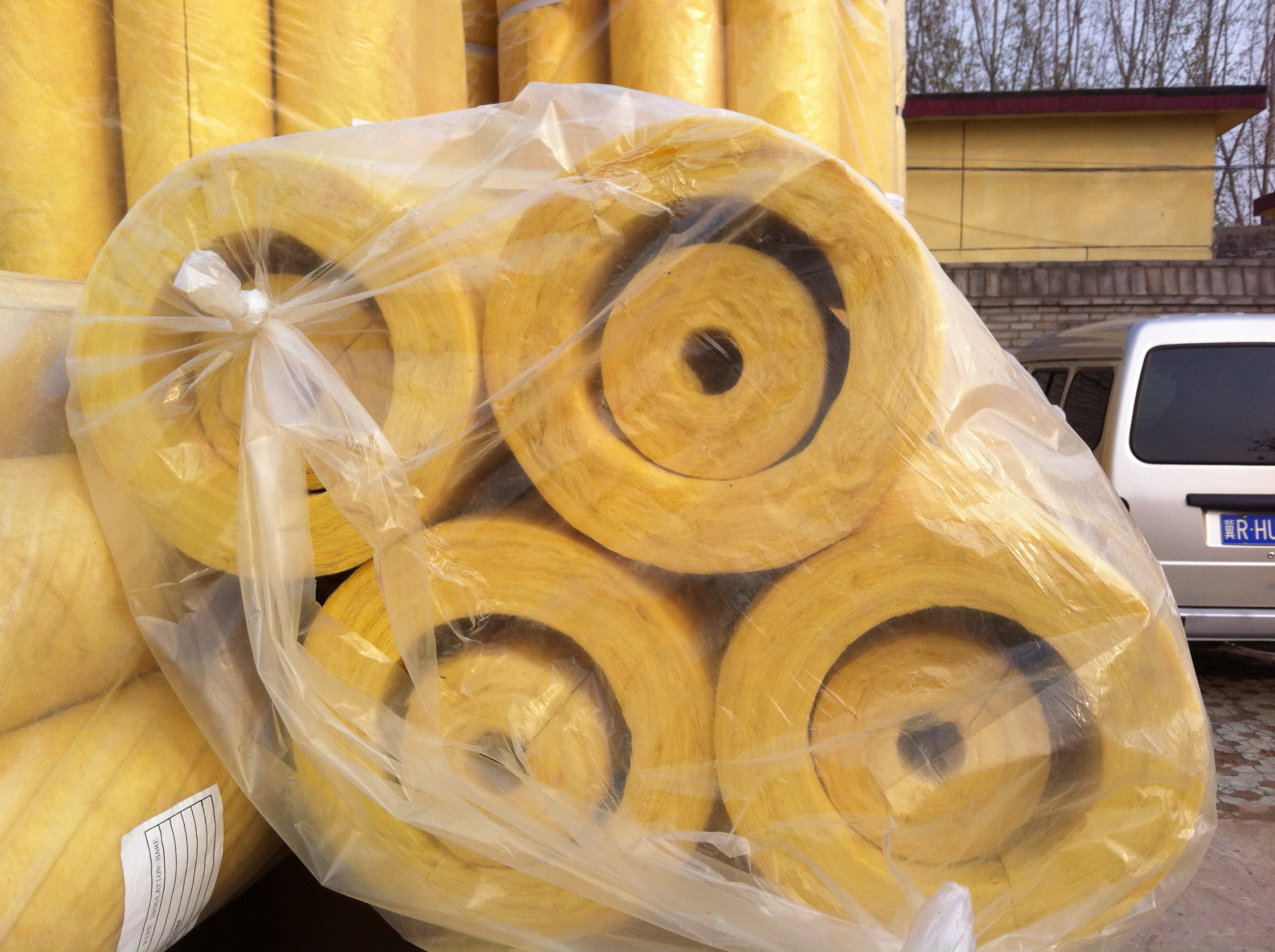

Packing



 Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 5  Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 6


 Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 7    Pre-Insulated Glass Wool Pipe with FSK Facing for Condensation Prevention 8


FAQ:



Q1: How to guarantee the quality of the products?

A1: Our experienced QC team will inspect product's quality in every process



Q2: How to pack exported goods?

A2: Our standard package is Vacuum plastic bag +woven bag (Standard Export Packing).



Q3: What is your lead time for one 40HC container order?

A3: Usual 10-15 work days after placing order.



Q4:About the after-sale service, how to solve the problems occurred of your overseas customer in time?

A4:The warranty of our products is one year. If our products or packing exist quality problem, we will replace or compensate accordingly.
